Key Architecture Highlights

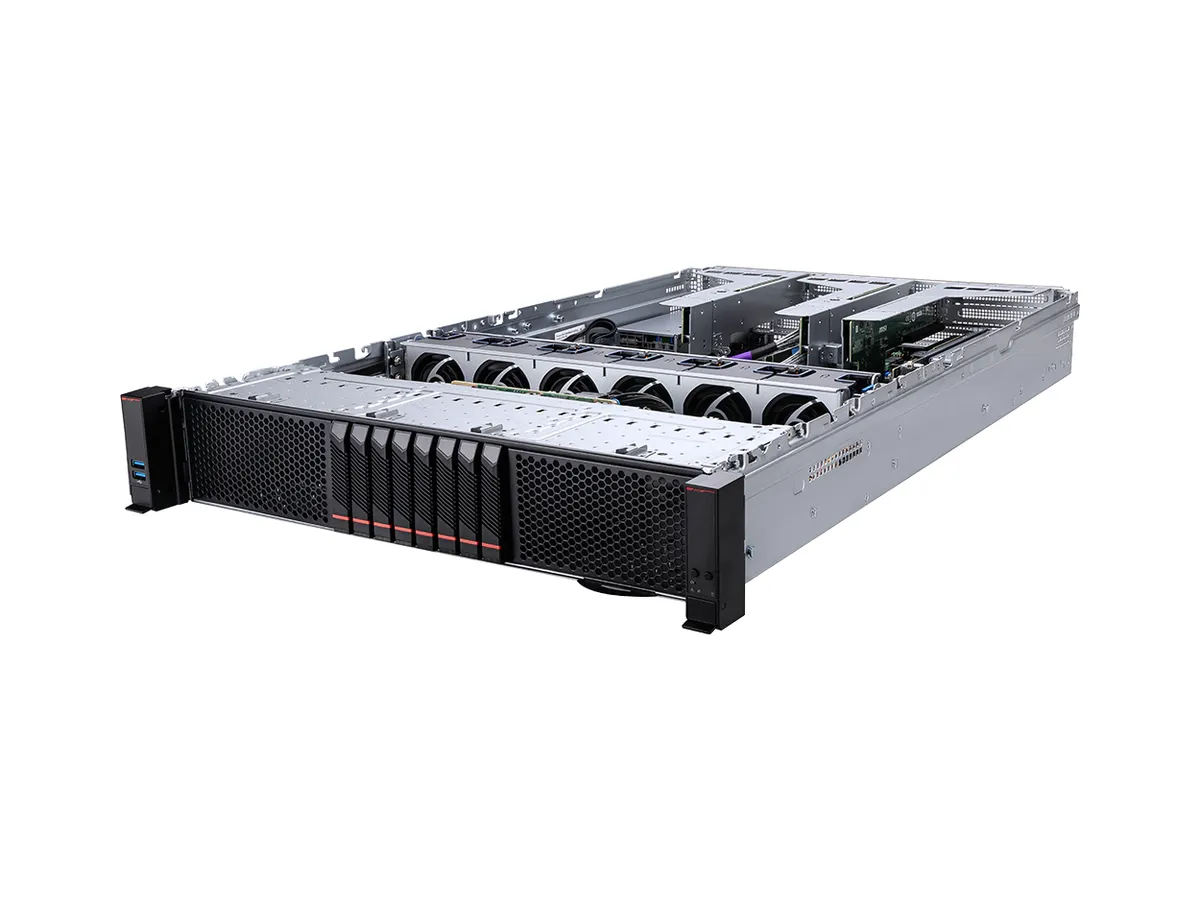

- Chassis form factor: 2U
- Chassis dimensions: 438mm(17.2") Wx 87mm(3.4") Hx 770mm(30.3")D
- Processors and sockets: Supported processors: Dual Intel ® Xeon ® 6700E-series, 6500P-series and 6700P-series processors, TDP up to 350W; Processor socket: (2) LGA4710 (Socket E2)
Applications
- Corporate data center computing
- Virtualization and cloud computing
Engineering Parameters
| Chassis form factor | 2U |
|---|---|
| Chassis dimensions | 438mm(17.2") Wx 87mm(3.4") Hx 770mm(30.3")D |
| Processors and sockets | Supported processors: Dual Intel ® Xeon ® 6700E-series, 6500P-series and 6700P-series processors, TDP up to 350W Processor socket: (2) LGA4710 (Socket E2) |
| Memory support | (32) DDR5 DIMM Slots, 8 channels per CPU(2DPC), RDIMM/RDIMM-3DS/MRDIMM; - Max. Frequency:; RDIMM: ; 6500P/6700P series: 6400 MT/s (1DPC), 6000 MT/s (2DPC); 6700E series: 6400 MT/s (1DPC), 5200 MT/s (2DPC); MRDIMM: 8000MT/s(only support 1DPC); - Max. Capacity per DIMM: 256GB(RDIMM), 64GB(MRDIMM); *MRDIMMs are only supported with Intel® Xeon® 6 P-core series processors |
| Drive bays | (8) Front hot-swap 2.5"" U.2 PCIe 5.0 x4 NVMe drive bays (4 from CPU0, 4 from CPU1); (2) Rear hot-swap E1.S 9.5mm PCIe 5.0 x4 NVMe drive bays (CPU1) |
| Internal Storage | (2) 2280/22110 PCIe 5.0 x2 NVMe M.2 ports (CPU0) |
| Expansion slots | (2) PCIe 5.0 x16 FHFL double wide slots support max 400W* PCIe card (1 from CPU0, 1 from CPU1); * PCIe cards with TDP over 350W supported under specific conditions. Please contact our representative for details.; (2) PCIe 5.0 x16 FHFL single wide slots (1 from CPU0, 1 from CPU1); (2) PCIe 5.0 x16 FHHL single wide slots (1 from CPU0, 1 from CPU1) |
| Networking and interfaces | Network interfaces: (1) PCIe 5.0 x16 OCP3 NIC Mezzanine slot (CPU0, NCSI supported) Front interfaces: (8) Hot-swap 2.5" U. 2 drive bays; (2) USB 3.0 Type-A Ports; (1) System Power LED Button; (1) UID LED Button; (1) Reset Button; (4) Status LEDs: Fault / LAN / M.2 Rear interfaces: (2) Hot-swap E1.S 9.5mm drive bays; (1) 1000Base-T Dedicated Server Management Ports; (1) COM USB Type A port; (1) USB 2.0 Type-A Ports; (1) Mini Display port; (1) Power LED (Green) Button; (1) UID LED (Blue) Button; (1) Status LEDs: Green / Red |
| Security features | Chassis Intrusion; TPM2.0 module supported (optional); ASPEED AST1060 Hardware Root of Trust module supported (optional) |
| Server management | (1) 1000Base-T Dedicated Server Management Port; ASPEED AST2600 with AMI MegaRAC based firmware supporting IPMI 2.0 and DMTF Redfish API; Dual BIOS and dual BMC; eMMC for local BMC storage media |
Warranty
Public manufacturer information does not specify the warranty term applicable to our supply channel. The supply region, channel and actual warranty service are confirmed in the supply contract.
