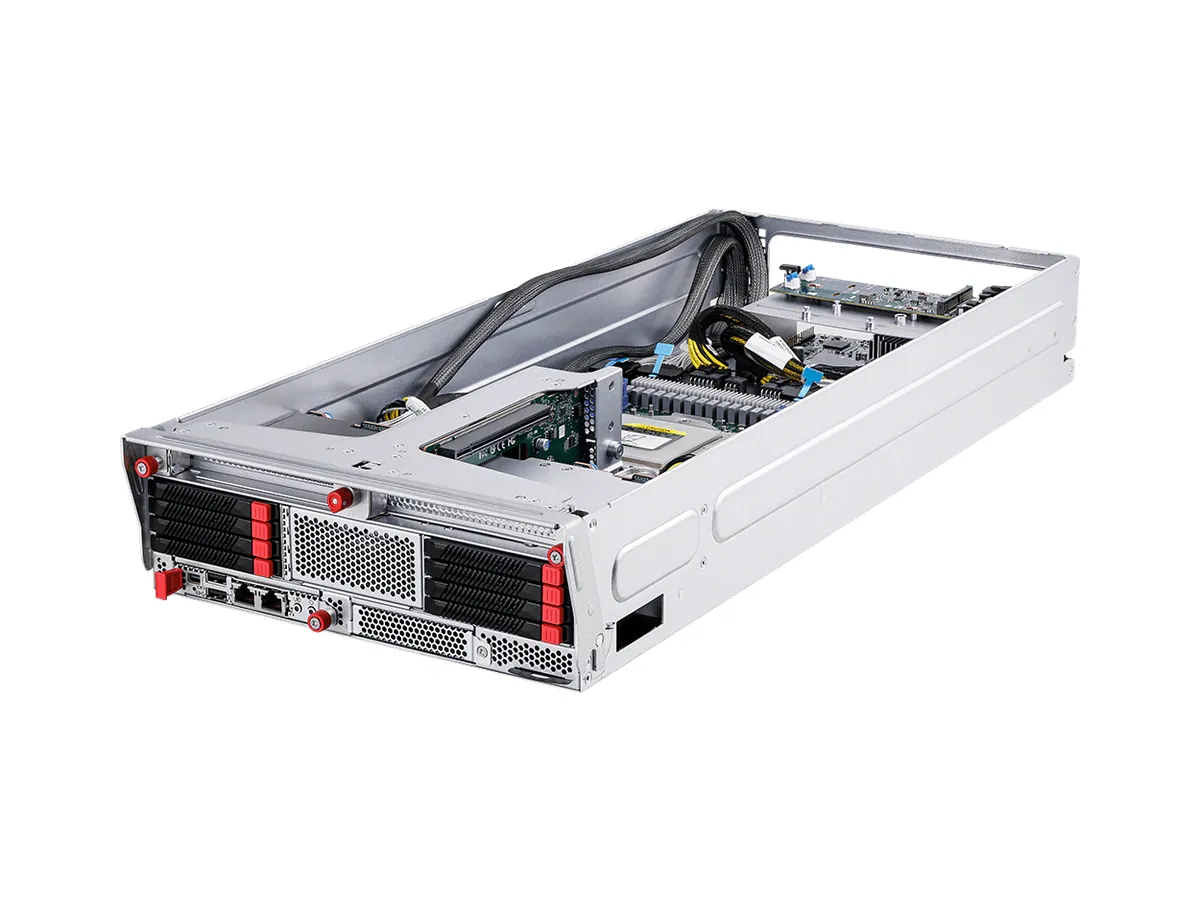

Key Architecture Highlights
- Chassis form factor: 2OU2N
- Chassis dimensions: 537mm(21")Wxx93mm(3.66")Hx857mm(33.74")D
- Processors and sockets: Supported processors: Single AMD EPYC ™ 9006 SP7 series processors, TDP up to 600W, per node; Processor socket: (1) AMD Socket SP7 per node
Applications
- Corporate data center computing
- Virtualization and cloud computing
Engineering Parameters
| Chassis form factor | 2OU2N |
|---|---|
| Chassis dimensions | 537mm(21")Wxx93mm(3.66")Hx857mm(33.74")D |
| Processors and sockets | Supported processors: Single AMD EPYC ™ 9006 SP7 series processors, TDP up to 600W, per node Processor socket: (1) AMD Socket SP7 per node |
| Memory support | (16) DDR5 DIMM Slots, 16 channels(1DPC), RDIMM/RIMM-3DS/MRDIMM, per node; - Max. Frequency:; RDIMM: 8,000 MT/s; MRDIMM: 12,800 MT/s |
| Drive bays | (8) Front hot-swap E3.S 1T PCIe 6.0 x4 NVMe drive bays per node |
| Internal Storage | (2) 2280/22110 PCIe 4.0 x2 NVMe M.2 ports per node |
| Expansion slots | Per node: ; (1) FHHL single wide PCIe6.0 x16 slot; (1) FHFL single wide PCIe6.0 x16 slot supports max 160W PCIe card |
| Networking and interfaces | Network interfaces: (1) PCIe 6.0 x16 OCP3.0 slot (NCSI supported) per node Front interfaces: Per node:; (8) Hot-swap E3.S 1T drive bays; (1) 1000Base-T Dedicated Server Management Ports; (1) 1000Base-T Ethernet Ports; (1) COM USB Type A port; (1) USB 3.0 Type-A Ports; (1) Mini Display port; (1) Power LED (Green) Button; (1) UID LED (Blue) Button; (1) Status LEDs: Green / Red |
| Security features | Node present detection; TPM2.0 module supported (optional); ASPEED AST1060 Hardware Root of Trust module supported (optional) |
| Server management | Per node:; (1) 1000Base-T Dedicated Server Management Port; ASPEED AST2700 with AMI OneTree OpenBMC based firmware supporting IPMI 2.0 and DMTF Redfish API; Dual BIOS and dual BMC; Dual CPLD firmware image; eMMC for local BMC storage media (optional) |
| Environmental requirements | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) ; Operating humidity: 8% to 85% (non-condensing) ; Non-operating Temperature: -30°C ~ 60°C (-40°F to 140°F) ; Non-operating Relative Humidity: 8% to 90% (non-condensing) |
| Power supply specifications | DC 48V Busbar |
| Cooling system | (1) EVAC air cooling modules for max. 600W CPU per node; (4) Rear 8080 DC 48V Hot-swap FANs per system |
Warranty
Public manufacturer information does not specify the warranty term applicable to our supply channel. The supply region, channel and actual warranty service are confirmed in the supply contract.
