Key Architecture Highlights

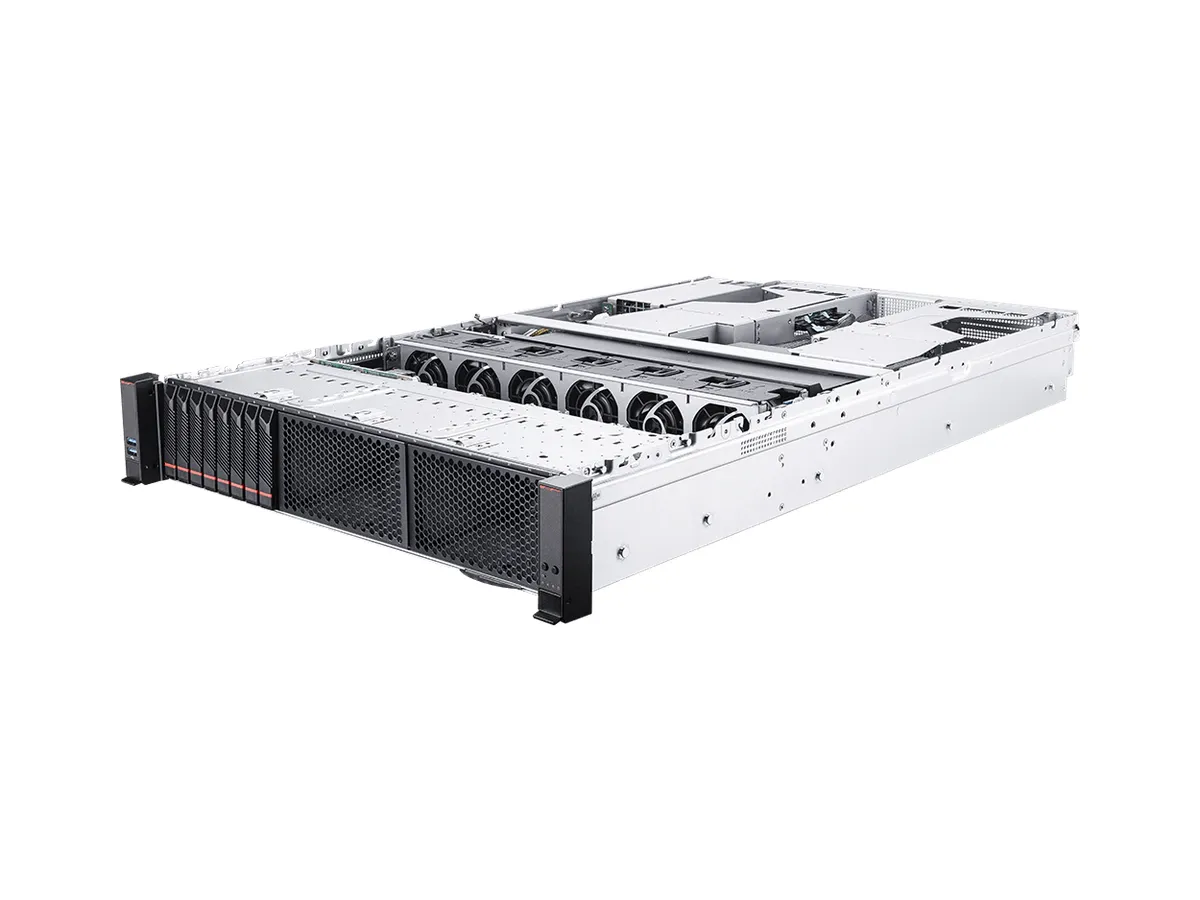

- Chassis form factor: 2U
- Chassis dimensions: 438mm(17.2") Wx 87mm(3.4") Hx 764mm(30")D
- Processors and sockets: Supported processors: Single AMD EPYC ™ 9004 and 9005 series processor, up to TDP 500W; Processor socket: (1) LGA6096 (Socket SP5)
Applications
- Corporate data center computing
- Virtualization and cloud computing
Engineering Parameters
| Chassis form factor | 2U |
|---|---|
| Chassis dimensions | 438mm(17.2") Wx 87mm(3.4") Hx 764mm(30")D |
| Processors and sockets | Supported processors: Single AMD EPYC ™ 9004 and 9005 series processor, up to TDP 500W Processor socket: (1) LGA6096 (Socket SP5) |
| Memory support | (24) DDR5 DIMM Slots, 12 channels(2DPC), RDIMM/RIMM-3DS; - Max. Frequency 5200MT/s(1DPC), 4400MT/s(2DPC); - Max. Capacity per DIMM: 256GB; AMD EPYC™ 9005:; With DDR5 6400 1R, up to 5200 MT/s (1DPC) and 4400 MT/s (2DPC); With DDR5 6400 2R, up to 5200 MT/s (1DPC) and 4000 MT/s (2DPC); With DDR5 5600/4800 1R, up to 4800 MT/s (1DPC) and 4000 MT/s (2DPC); With DDR5 5600/4800 2R, up to 4800 MT/s (1DPC) and 3600 MT/s (2DPC) |
| Drive bays | (8) Front hot-swap 2.5" U.2 PCIe 5.0 x4 NVMe drive bays |
| Internal Storage | (2) 2280/22110 PCIe 3.0 x2 NVMe M.2 ports |
| Expansion slots | (2) FHFL PCIe5 x16 double wide slots, supporting up to 600W PCIe cards; *PCIe card with TDP over 400W is supported at 25℃ operating temperature ; (1) FHHL PCIe5.0 x16 single wide slot |
| Networking and interfaces | Network interfaces: (2) PCIe 5.0 x16 OCP3.0 slots (NCSI supported); * Only one NCSI slot is functional at a time Front interfaces: (8) Hot-swap 2.5" U. 2 drive bays; (2) USB 3.0 Type-A port; (1) System Power LED button; (1) UID LED button; (1) Reset button; (4) Status LEDs: Fault / LAN / M.2 Rear interfaces: (1) 1000Base-T Dedicated Server Management Ports; (1) COM USB Type A port; (1) USB 2.0 Type-A port; (1) Mini Display port; (1) Power LED (Green) button; (1) UID LED (Blue) button; (1) Status LEDs: Green / Red |
| Security features | Chassis intrusion; TPM2.0 module supported (optional); ASPEED AST1060 Hardware Root of Trust module supported (optional) |
| Server management | (1) 1000Base-T Dedicated Server Management Port; ASPEED AST2600 with AMI MegaRAC based firmware supporting IPMI 2.0 and DMTF Redfish API; Dual BIOS and dual BMC; eMMC for local BMC storage media |
| Supported operating systems | Windows 2025; Ubuntu 24.04; Redhat 9.0; Rocky 8.10; Rocky 9.7; Rocky 10.1 |
Warranty
Public manufacturer information does not specify the warranty term applicable to our supply channel. The supply region, channel and actual warranty service are confirmed in the supply contract.
