Key Architecture Highlights
- Memory: Memory - memory technology: Integrated in SoC Process, LPDDR5 DRAM 3200 MHz Memory - memory capacity up to 8GB
- Show Output: Graphic - controller: NVIDIA® Ampere GPU Graphic memory: Depends on GPU Graphic - display interfaces: HDMI up to 3840 × 2160 @30Hz
- Wireless Network: 2 x GbE RJ-45
Applications
- The Edge of AI
- Local AI development
- Industrial intelligence
Engineering Parameters
| Processor And Calculator | System Processor - Processor: NVIDIA ® Jetson Orin NANO 8GB: 6-Core Arm ® Corte x ® -A78AE System Processor - Processor Frequency: 1.5 GHz (Ma x) System Processor - L2 Cache: 1MB System Processor - Processor Type: Jetson Orin Nano Module |
|---|---|
| Memory | Memory - memory technology: Integrated in SoC Process, LPDDR5 DRAM 3200 MHz Memory - memory capacity up to 8GB |
| Show Output | Graphic - controller: NVIDIA® Ampere GPU Graphic memory: Depends on GPU Graphic - display interfaces: HDMI up to 3840 × 2160 @30Hz |
| Wireless Network | 2 x GbE RJ-45 |
| Expansion Interface | 1 x M.2 E key (PCIe/UART), 2230 1 x M.2 M key (PCIe Gen4 x4 NVMe), 2280 |

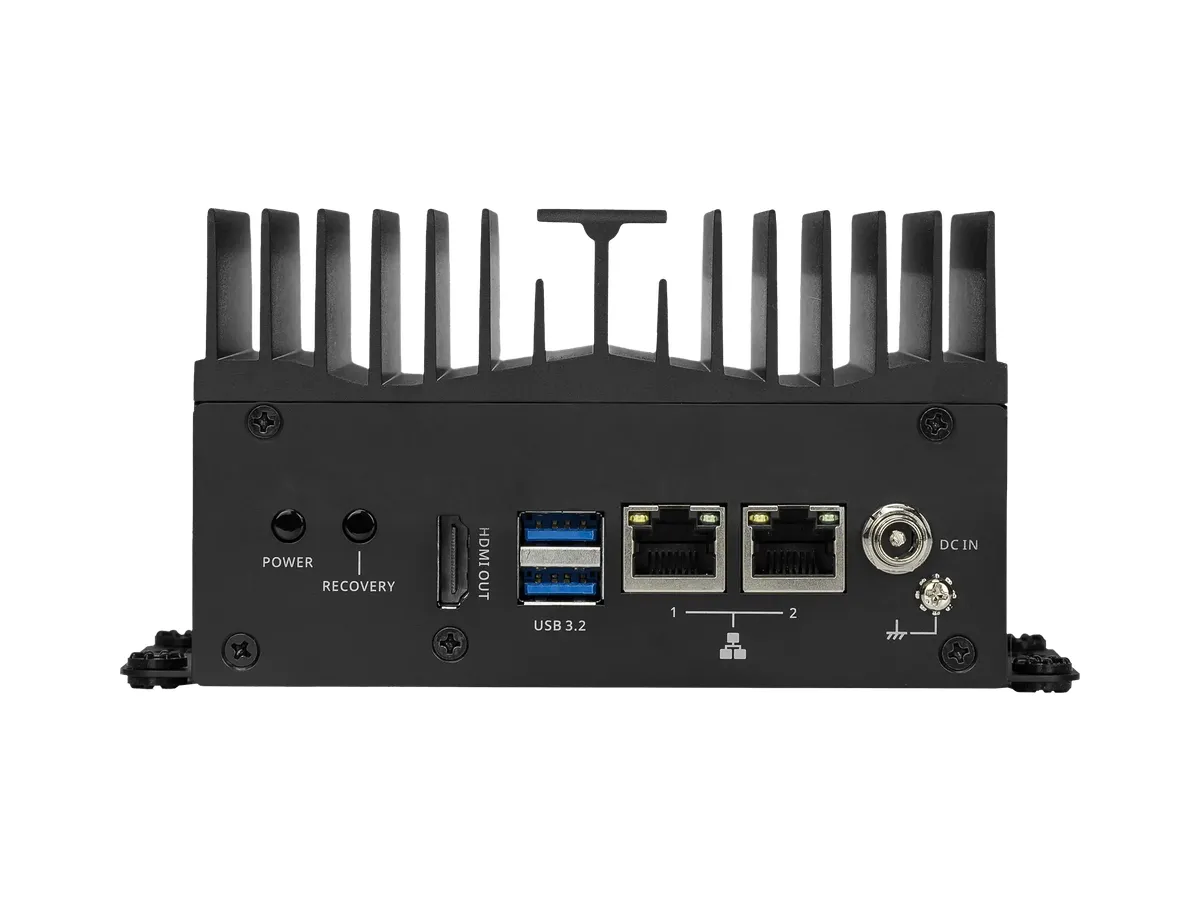

| External interfaces | I/O Interface - RJ-45 interface: 2 I/O Interface - USB interface: 1 x USB 2.0, Type-C for recovery 2 x USB 3.2 Gen2, Type-A I/O Interface - HDMI interface: 1 |
| Power input | DC-in 12~24V with DC-Jack or ATX 4-pin connector |
| Environmental requirements | Environment - operating temperature :-25 ~ 60 °C Note: Thermal w/ Airflow:0.7m/s Environment - operating humidity :10 ~ 90%, non-condensing Environment - storage Humidity:40 °C @ 95%, non-condensing Environment - storage temperature:-40 ~ 85 °C |
| Dimensions And Install | Physical Characteristics - Device dimensions: 126 x 96 x 74 mm Physical Characteristics - Weight: 1 kg Physical Characteristics - Installation method: DIN-rail mount |
| Software Platform | NVIDIA® Jetson Linux 35.5 |
Warranty
Public manufacturer information does not specify the warranty term applicable to our supply channel. The supply region, channel and actual warranty service are confirmed in the supply contract.
