Key Architecture Highlights
- Memory: Memory - memory technology: Dual-channel DDR5 5600 to 6400MHz (Depends on CPU) Memory - memory capacity Up to 96GB Memory - memory slots:2 x 262-pin SO-DIMM
- Show Output: Graphic - controller: Intel® HD Graphics Graphic memory: Intel® Graphics Graphic - Multi-screen support: 2 independent displays Graphic - display interfaces: DP up to 4096 x 2304 @60Hz
- Wireless Network: 1 x Intel® I219-LM GbE LAN 1 x Intel® I226-V GbE LAN
Applications
- The Edge of AI
- Local AI development
- Industrial intelligence
Engineering Parameters
| Processor And Calculator | System Processor: Intel® Core Ultra Processor (Series 1) Meteor Lake-U Series Processors, CoreTM Ultra 7 165U/155U, CoreTM Ultra 5 135U/125U Intel® Core Ultra Processor (Series 2) Arrow Lake-U Series Processors, CoreTM Ultra 7 265U/255U, CoreTM Ultra 5 235U/225U System Processor - processor frequency:P-Core: 4.3GHz to 5.3GHz (Depends on CPU) E-Core: 3.6GHz to 4.2GHz (Depends on CPU) System Processor - L2 cache :12MB System Processor - processor type:BGA |
|---|---|
| Memory | Memory - memory technology: Dual-channel DDR5 5600 to 6400MHz (Depends on CPU) Memory - memory capacity Up to 96GB Memory - memory slots:2 x 262-pin SO-DIMM |
| Show Output | Graphic - controller: Intel® HD Graphics Graphic memory: Intel® Graphics Graphic - Multi-screen support: 2 independent displays Graphic - display interfaces: DP up to 4096 x 2304 @60Hz |
| Wireless Network | 1 x Intel® I219-LM GbE LAN 1 x Intel® I226-V GbE LAN |

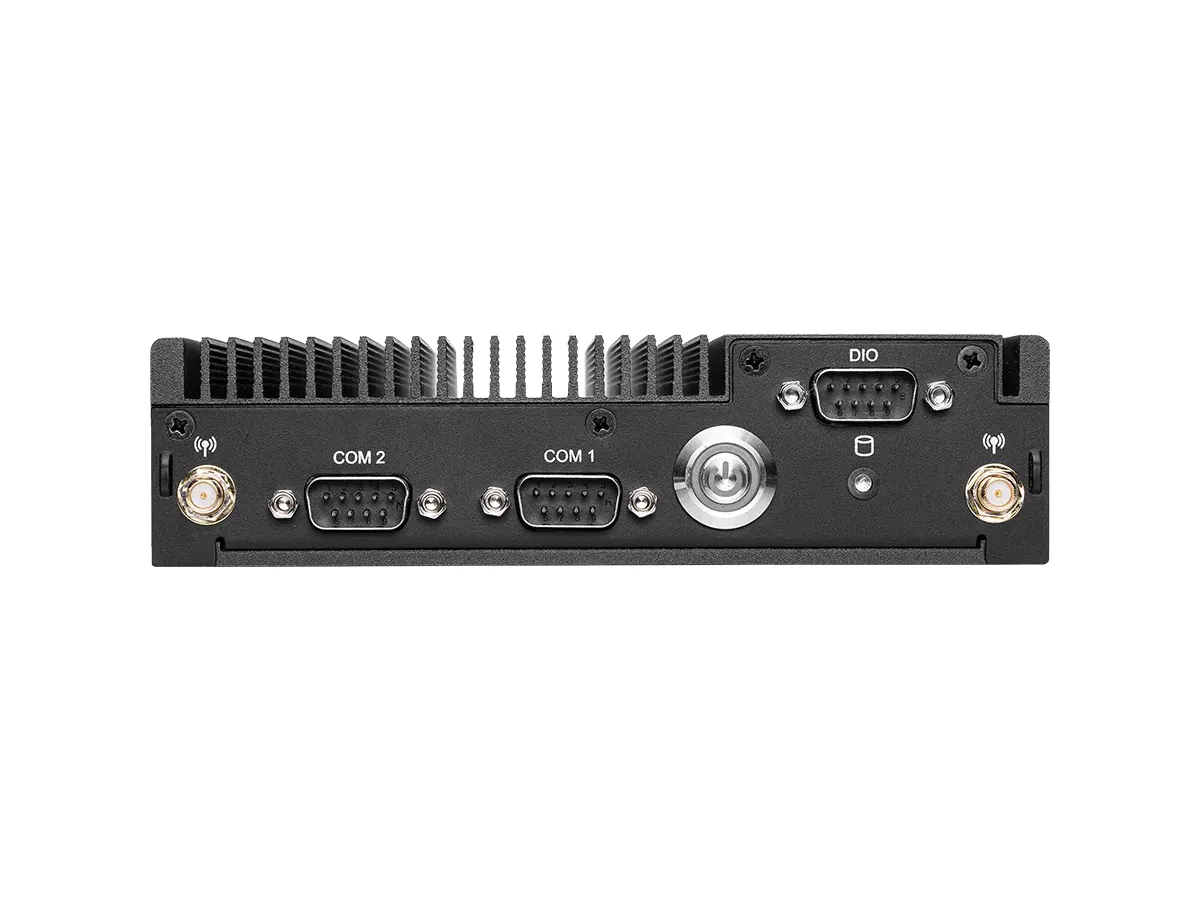

| External interfaces | I/O Interface - RJ-45 interface:2 I/O Interface - USB interface:4 x USB 10 Gbps I/O Interface - serial ports:2 x COM ports COM1~2: RS-232/422/485, 0V/5V/12V I/O Interface - DisplayPort interface:2 |
| Expansion Interface | 1 x M.2 M key (PCIe Gen4 x4 NVMe), 2280 1 x M.2 B key (SATA/PCIe x1, USB 2.0), 2242/3042 1 x M.2 E key (PCIe x1, USB 2.0, w/CNVi), 2230 |
| Power input | DC-in 12~24V (OCP & OVP) |
| Environmental requirements | Environment - operating temperature :-10~60 °C (w/SSD) Note: Thermal w/ Airflow:0.7m/s Environment - operating humidity :10 ~ 90%, non-condensing Environment - storage Humidity:10 ~ 90%, non-condensing Environment - storage temperature:-20 ~ 80°C |
| Dimensions And Install | Physical Characteristics - Device dimensions: 130 x 155 x 40 mm Physical Characteristics - Weight: 1.1 kg Physical Characteristics - Installation method: Wall mount (STD) / DIN-rail mount (STD) |
| Software Platform | Windows 10 IoT Enterprise LTSC (64-bit, 21H2) Windows 11 IoT Enterprise LTSC (64-bit, 24H2) Linux (Support by request) |
Warranty
Public manufacturer information does not specify the warranty term applicable to our supply channel. The supply region, channel and actual warranty service are confirmed in the supply contract.
