Key Architecture Highlights
- Memory: Memory - memory technology: Single-channel DDR5 4800 MHz Memory - memory capacity Up to 16GB Memory - memory slots :1 x 262-pin SO-DIMM
- Show Output: Graphic - controller: Intel® UHD Graphics Graphic memory: Depends on CPU Graphic - Multi-screen support: 2 independent displays Graphic - display interfaces: HDMI up to 3840 x 2160 @30Hz DP up to 4096 × 2304 @60Hz
- Wireless Network: 2 x Intel® I226-V 2.5 GbE LAN
Applications
- The Edge of AI
- Local AI development
- Industrial intelligence
Engineering Parameters
| Processor And Calculator | System Processor - processor: Intel® IOTG Alder Lake-N Processor N97, QC, 12W System Processor - processor: Intel® IOTG Alder Lake-N Core i3-N305, OC, 12W up to 15W System Processor - processor frequency:2 GHz, up to 3.6 GHz System Processor - processor frequency:1.8 GHz, up to 3.8 GHz System Processor - L2 cache :6MB System Processor - processor type: BGA |
|---|---|
| Memory | Memory - memory technology: Single-channel DDR5 4800 MHz Memory - memory capacity Up to 16GB Memory - memory slots :1 x 262-pin SO-DIMM |
| Show Output | Graphic - controller: Intel® UHD Graphics Graphic memory: Depends on CPU Graphic - Multi-screen support: 2 independent displays Graphic - display interfaces: HDMI up to 3840 x 2160 @30Hz DP up to 4096 × 2304 @60Hz |
| Wireless Network | 2 x Intel® I226-V 2.5 GbE LAN |

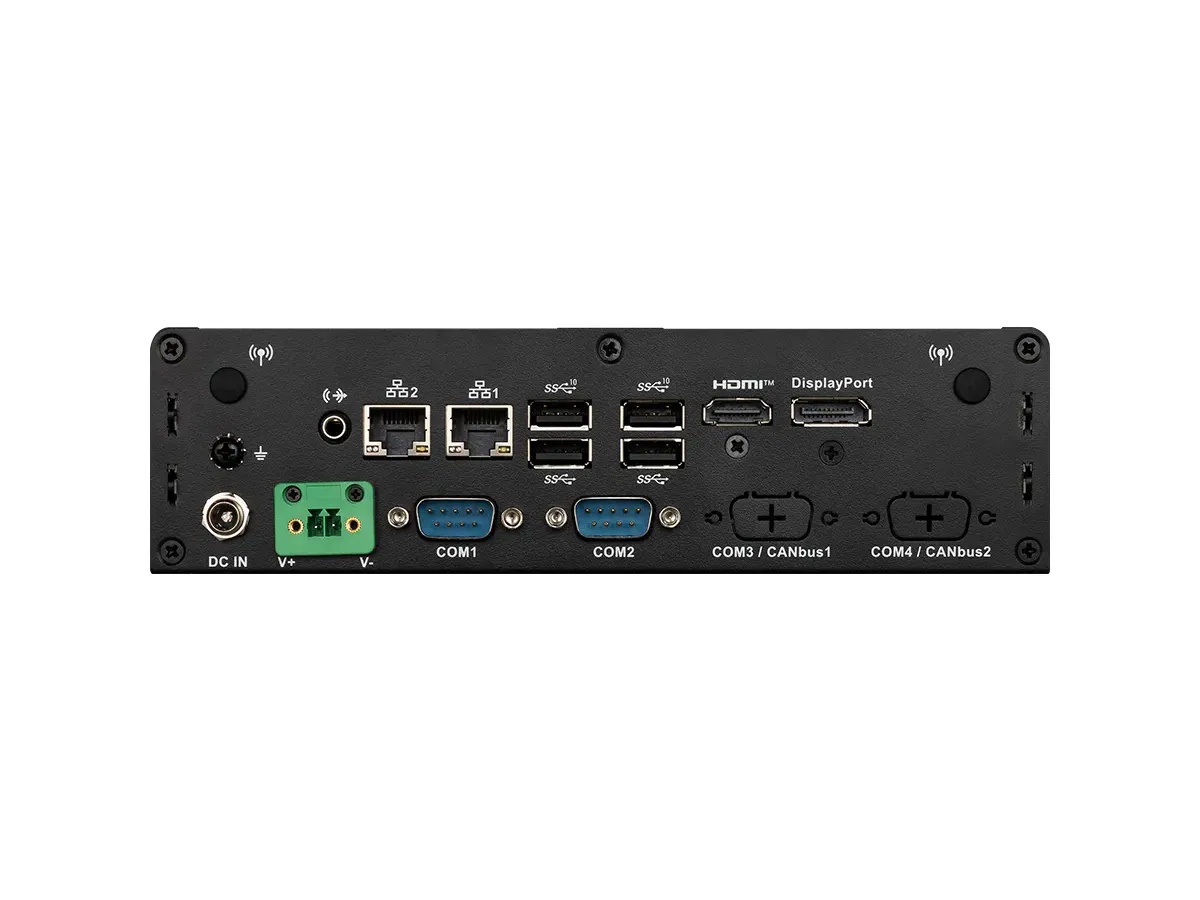

| External interfaces | I/O Interface - RJ-45 interface: 2 I/O Interface - Audio interface: 1 x Line-out 1 x Mic-in I/O Interface - USB interface: 6 x USB 2.0 2 x USB 3.2 Gen 2 2 x USB 3.2 Gen 1 I/O Interface - Serial ports: 4 x COM ports COM1: RS-232/422/485, 0V/5V/12V COM2: RS-232 COM3~4: Option by M.2 Module |
| Expansion Interface | 1 x M.2 B key (SATA/PCIe x1), 2242/3042/2280 1 x M.2 E key (PCIe x1, USB 2.0), 2230 |
| Storage | 1 x 2.5" HDD/SSD Bay |
| Power input | DC-in 9~36V with Lockable DC Jack Phoenix pluggable connectors with latch (V+, V-) |
| Environmental requirements | Environment - operating temperature:-10 ~ 40 °C -10 ~ 55 °C (w/ WT devices) Note: Thermal w/ Airflow: 0.7m/s Environment - operating humidity::10 ~ 90%, non-condensing Environment - storage Humidity::10 ~ 90%, non-condensing Environment - storage temperature:-20 ~ 80°C |
| Dimensions And Install | Physical Characteristics - device dimensions :200 x 150 x 55 mm Physical Characteristics - weight :1.38 kg Physical Characteristics - installation method: Wall mount (STD) / DIN-rail mount(STD) / VESA mount ((by BOM option) |
| Software Platform | Windows 10 IoT Enterprise 2021 LTSC (64-bit, 21H2) Windows 11 IoT Enterprise 24H2 LTSC (64-bit) Linux (Support by request) |
Warranty
Public manufacturer information does not specify the warranty term applicable to our supply channel. The supply region, channel and actual warranty service are confirmed in the supply contract.
