Key Architecture Highlights
- Memory: Memory - memory technology: Single-channel DDR5 5200 MHz Memory - memory capacity Up to 32 GB Memory - memory slots :1 x 262-pin SO-DIMM
- Show Output: Graphic - controller: Intel® UHD Graphics Graphic memory: Depends on CPU Graphic - Multi-screen support: 4 independent displays Graphic - display interfaces: HDMI 2.0 up to 4096 x 2340 @60Hz
- Wireless Network: 4 x Intel® I226-LM 2.5 GbE LAN; 4 x Intel® I226-IT 2.5 GbE LAN
Applications
- The Edge of AI
- Local AI development
- Industrial intelligence
Engineering Parameters
| Processor And Calculator | Processor: Intel® Mobile 13th Gen Raptor Lake-P U Series Processors, CoreTM i3-1315UE/i5-1335UE/i5-1345UE System Processor - processor: Intel® Mobile 13th Gen Raptor Lake-P U Series Processors, CoreTM i5-1345URE / i3-1315URE System Processor - processor frequency :3.30 GHz to 4.6 GHz (Depends on CPU) System Processor - L2 cache :6M to 12M (Depends on CPU) System Processor - processor type: BGA |
|---|---|
| Memory | Memory - memory technology: Single-channel DDR5 5200 MHz Memory - memory capacity Up to 32 GB Memory - memory slots :1 x 262-pin SO-DIMM |
| Show Output | Graphic - controller: Intel® UHD Graphics Graphic memory: Depends on CPU Graphic - Multi-screen support: 4 independent displays Graphic - display interfaces: HDMI 2.0 up to 4096 x 2340 @60Hz |
| Wireless Network | 4 x Intel® I226-LM 2.5 GbE LAN 4 x Intel® I226-IT 2.5 GbE LAN |

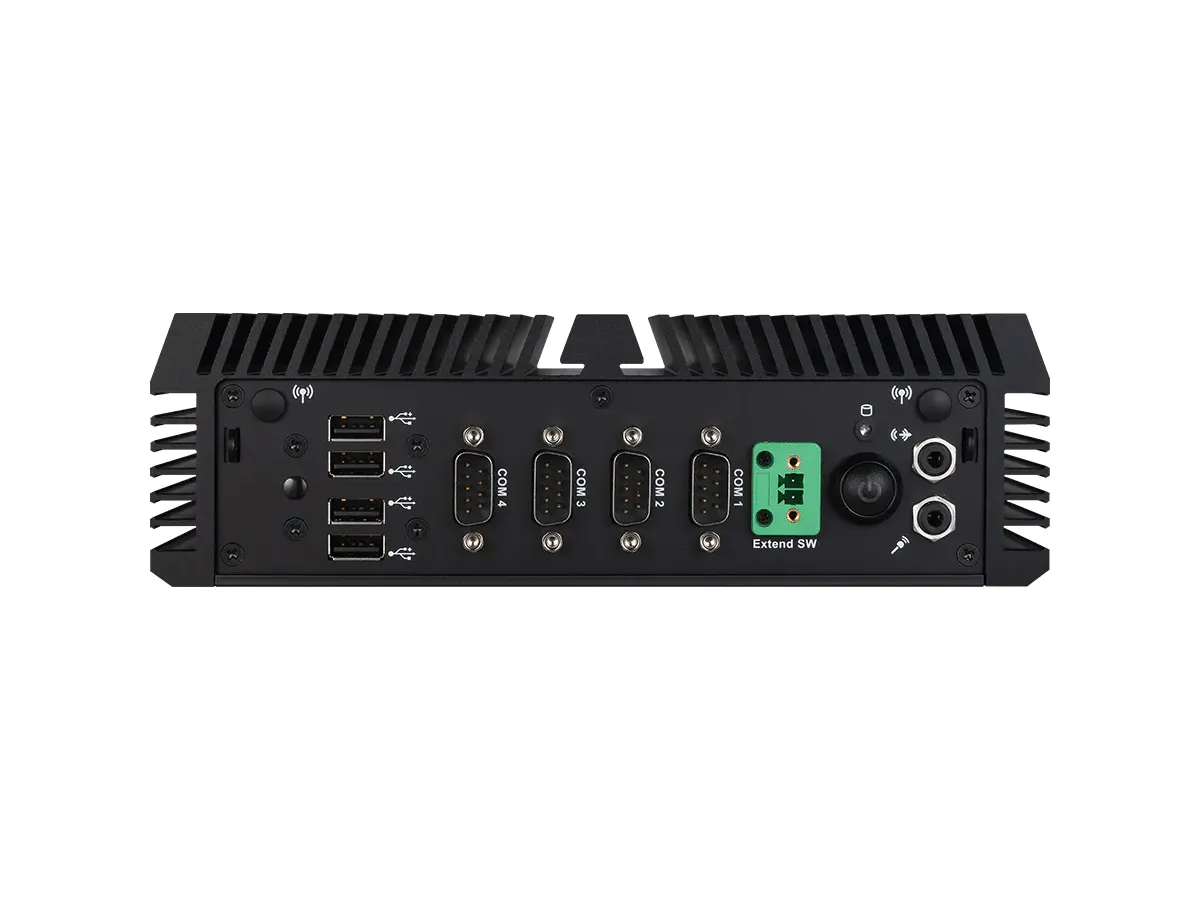

| External interfaces | I/O Interface - RJ-45 interface: 4 I/O Interface - Audio interface: 1 x Mic-in 1 x Line-out I/O Interface: USB interface: 4 x USB 2.0 4 x USB 3.2 Gen 2 I/O Interface: Serial ports: 4 x COM ports COM1 ~ 4 RS-232/422/485, 0V/5V/12V |
| Expansion Interface | 1 x M.2 M key (PCIe Gen4 x4 NVMe), 2280 1 x M.2 B key (PCIe x1, USB 2.0, w/NANO SIM-Holder), 2242/3042 1 x M.2 E key (PCIe x1, USB 2.0, w/CNVi), 2230 |
| Storage | 1 x 2.5" SSD Bay |
| Power input | DC-in 12V~24V Wide-Range (OCP & OVP) Phoenix pluggable connectors with latch (V+, V-) |
| Environmental requirements | Environment - operating temperature: 0 ~ 50 °C (w/ 2.5" SATA SSD(Ta: 85°C)) 0 ~ 45 °C (w/ M.2 NVMe SSD(Ta: 85°C)) Note: Thermal w/ Airflow: 0.7m/s Environment - operating temperature:-20 ~ 70 °C (w/ M.2 NVMe SSD ((Ta: 85°C), w/ WT MEM ((Ta: 95°C)) Note: Thermal w/ Airflow: 0.7m/s Environment - operating humidity: 10 ~ 90%, non-condensing Environment - storage humidity:10 ~ 90%, non-condensing Environment - storage temperature:-20 ~ 80°C |
| Dimensions And Install | Physical Characteristics - device dimensions :215 x 155 x 65 mm Physical Characteristics - weight :2.25 kg Physical Characteristics - installation method: Wall mount (STD) / DIN-rail mount(STD) / VESA mount ((by BOM option)) |
Warranty
Public manufacturer information does not specify the warranty term applicable to our supply channel. The supply region, channel and actual warranty service are confirmed in the supply contract.
