Key Architecture Highlights
- Screen And Touch: Display - Screen Dimensions: 12.1"; Display - Screen Resolution: 1024 x 768; Display - Screen Brightness (cd / m²): 500; Display - Screen Contrast: 700; Display - Touch Panel: Projective Capacitive 5-Wire Resistive
- Memory: Memory - memory technology: Single-channel DDR5 MHz Memory - memory capacity Up to 16GB Memory - memory slots :1 x So-DIMM Slot (262-Pin)
- Show Output: HDMI up to 3840 x 2160 DP up to 4096 x 2160
Applications
- Interaction between industrialists and machines
- Monitoring of equipment
- Industrial data collection
Engineering Parameters
| Screen And Touch | Display - Screen Dimensions: 12.1" Display - Screen Resolution: 1024 x 768 Display - Screen Brightness (cd / m²): 500 Display - Screen Contrast: 700 Display - Touch Panel: Projective Capacitive 5-Wire Resistive |
|---|---|
| Processor And Calculator | System Processor - Processor: Intel ® Alder Lake N Series Intel ® Processor N97 2.0GHz, QC, 12W Intel ® Atom X7425E 1.5GHz, QC, 12W Intel ® Core I3-N305 1.8GHz, 8C, 15W System Processor - Processor Frequency: 3.2 GHz up to 3.80 GHz System Processor - L2 Cache: 6MB |
| Memory | Memory - memory technology: Single-channel DDR5 MHz Memory - memory capacity Up to 16GB Memory - memory slots :1 x So-DIMM Slot (262-Pin) |
| Show Output | HDMI up to 3840 x 2160 DP up to 4096 x 2160 |
| Wireless Network | 2 x Intel® I226V Co-Lay Intel® I226LM PCIe 2.5GbE LAN |
| External interfaces | I/O Interface - RJ-45 interface :2 I/O Interface - Audio interface :1 x Line-out 1 x MIC-in I/O Interface - USB interface :2 x Dual Stacked Type-A USB 3.1 2 x USB 2.0 I/O Interface - String ports :3 x COM (1 x edge I/O, 2 x internal) COM1~2: RS-232/422/485, 0V/5V/12V COM3: RS-232, 0V/5V/12V (COM2~3 Option with cable) I/O Interface - HDMI interface :1 I/O Interface - DisplayPort interface :1 |
| Expansion Interface | 1 M.2 E key (reserved for WiFi) 1 x M.2 B key (reserved for storage) |
| Storage | 1 x 2.5" HDD (Option) |
| Power input | DC-in 12~24V |
| Environmental requirements | Environment - Protect Including Level: Front IP65 / Rear 41 Environment - Operating temperature: 0°C ~ 40°C Environment - Operating humidity: 20% ~ 90% RH Environment - Storage Humidity: 10% ~ 90% non-condensing Environment - Storage Temperature: -20°C ~ 60°C |

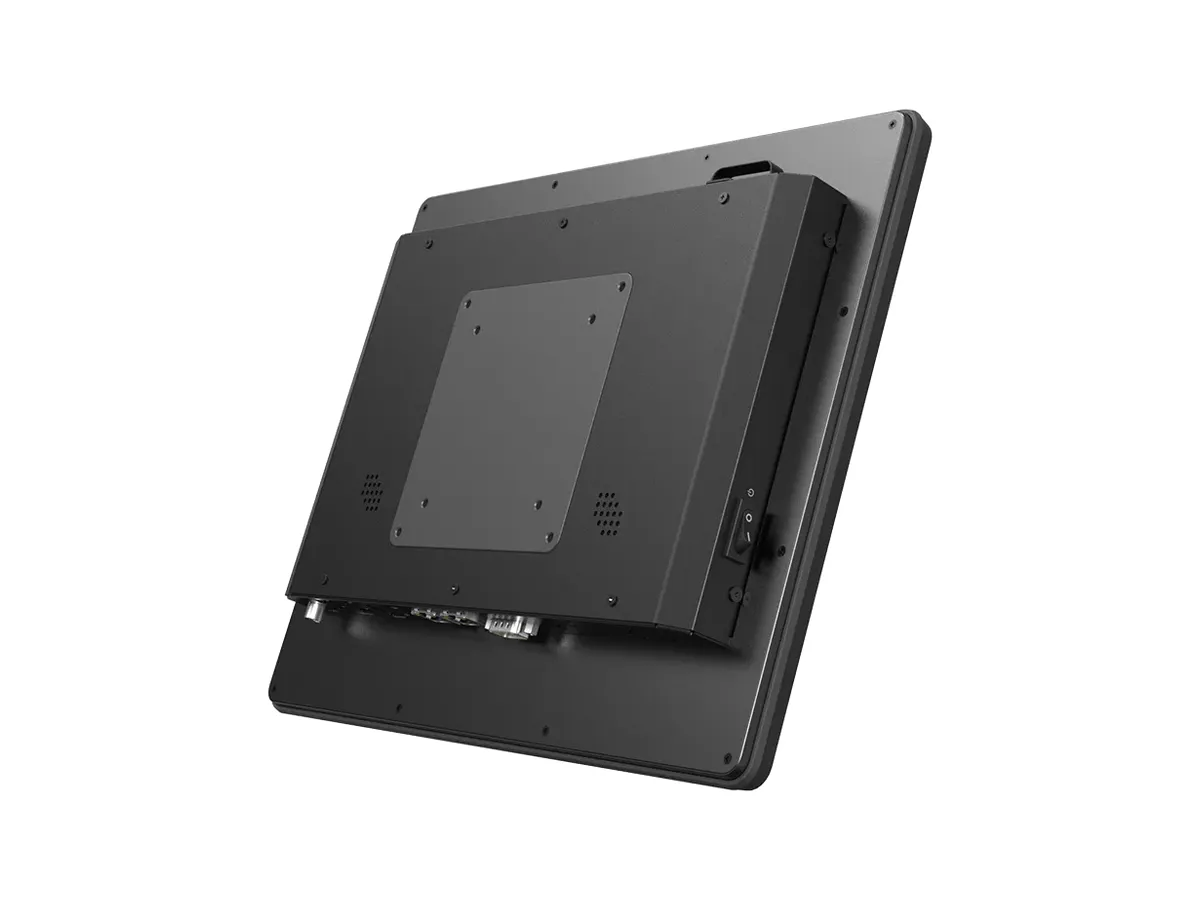

| Dimensions And Install | Physical Characteristics - Material of the machine: Plastic / Metal Physical Characteristics - device dimensions :251 x 313 x 13.45 mm Physical Characteristics - weight :2.3kg (5.07 lbs) Physical Characteristics - installation method: VESA 75 x 75, 100 x 100 mm (Optional) |
| Software Platform |
Warranty
Public manufacturer information does not specify the warranty term applicable to our supply channel. The supply region, channel and actual warranty service are confirmed in the supply contract.
