Key Architecture Highlights

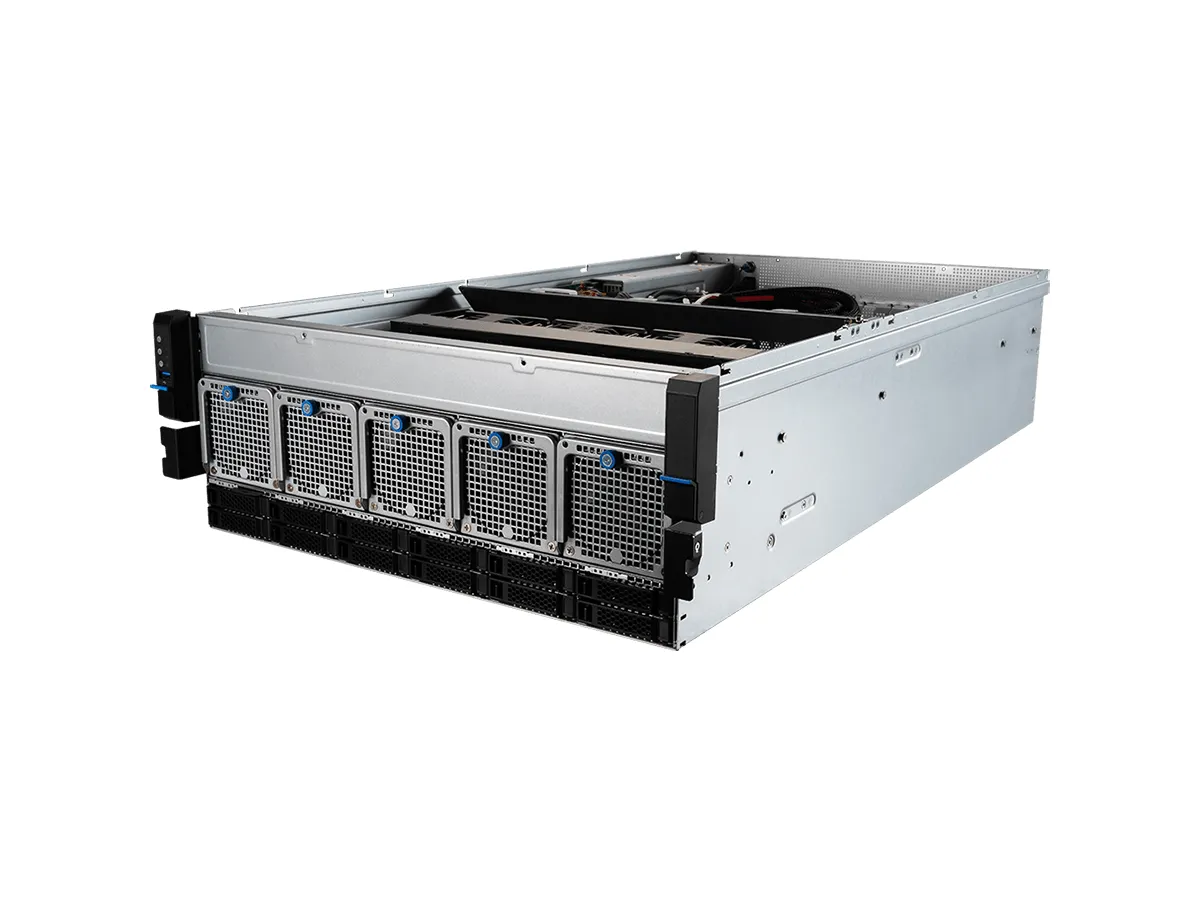

- Chassis form factor: 4U
- Chassis dimensions: 438mm(17.2")W x 176mm(6.9")H x 831mm(32.7")D
- Processors and sockets: Supported processors: Single AMD EPYCTM 9005/9004 Series processor and EPYCTM 9004 Series processors with AMD 3D V-CacheTM Technology, up to TDP 500W processor socket: 1) AMD Socket SP5
Applications
- AI training and inference
- High-performance computing
Engineering Parameters
| Chassis form factor | 4U |
|---|---|
| Chassis dimensions | 438mm(17.2")W x 176mm(6.9")H x 831mm(32.7")D |
| Processors and sockets | Supported processors: Single AMD EPYCTM 9005/9004 Series processor and EPYCTM 9004 Series processors with AMD 3D V-CacheTM Technology, up to TDP 500W processor socket: 1) AMD Socket SP5 |
| Memory support | (12) DDR5 DIMM Slots, 12 channels(1DPC), RDIMM/RIMM-3DS; - Max. Frequency 6400MT/s(1DPC) ; - Max. Capacity per DIMM: 256GB |
| Drive bays | (12) Hot-swap 2.5” U.2 PCIe 4.0 NVMe drive bays |
| Internal Storage | (1) M.2 2280/22110 PCIe 3.0 x4 port; (1) M.2 2280/22110 PCIe 3.0 x2 port |
| Expansion slots | (4) PCIe 5.0 x16 FHFL slots; (2) PCIe 4.0 x16 FHFL slots (x8 signal) |
| Networking and interfaces | Front interfaces: (12) Hot-swap 2.5 ” drive bays; (1) USB 3.2 Gen 1 Type-A Ports; (1) System Power LED Button; (1) UID LED Button; (1) Reset Button; (5) 8038 Easy-Swap chassis Fan s; (4) Status LEDs: M.2 / Fault / LAN Rear interfaces: (1) 1000Base-T Dedicated Server Management Ports; (2) USB 3.2 Gen 1 Type-A Ports; (1) VGA D-Sub Ports; (1) COM RJ45 Ports; (1) UID LED Button; (3) Status LEDs: Power / M.2 / Fault |
| Security features | TPM2.0 module supported (optional) |
| Server management | ASPEED AST2600 with AMI MegaRAC based firmware supporting IPMI 2.0 and DMTF Redfish API; (1) 1000Base-T Dedicated Server Management Port; Dual BMC |
| Supported operating systems | Windows 2022; Ubuntu 24.04; RedHat 9.0 |
| Environmental requirements | System Operating Temperature: 0°C ~ 35°C; Non-operating Temperature: -20°C ~ 70°C; Non-operating Relative Humidity: 5% to 85% (non-condensing) |
| Power supply specifications | (1+1) Redundant 3000W CRPS Titanium; Dimension (WxHxL): 73.5 x 40 x 265 mm; Rating:; AC Input: 100-127Vac, 14.5A, 50-60Hz; Output: Max 1097.4W, DC +12.2V/87A, +12Vsb/3A; AC Input: 200-220Vac, 16A, 50-60Hz; Output: Max 2598W, DC +12.2V/210A, +12Vsb/3A; AC Input: 220-240Vac, 16A, 50-60Hz; Output: Max 3037.2W, DC +12.2V/246A, +12Vsb/3A; *C19 power cords are required and will be offered as optional accessories. |
Warranty
Public manufacturer information does not specify the warranty term applicable to our supply channel. The supply region, channel and actual warranty service are confirmed in the supply contract.
