Key Architecture Highlights
- Chassis dimensions (W × H × D): 2U 438 x 87.5 x 815
- Memory support: 24 x DIMM slots Support DDR5 RDIMM 12-Channel memory per processor AMD EPYC™ 9005: Up to 6400 MT/s AMD EPYC™ 9004: Up to 4800 MT/s
- Network interfaces: Rear (G-SCM board - CDCR114): 2 x 1 Gb/s LAN (1 x Intel® I350-AM2) - Support NCSI function 1 x 10/100/1000 Mb/s Management LAN
Applications
- Enterprise computing
- Virtualization and cloud computing
- Data center
Engineering Parameters
| Chassis dimensions (W × H × D) | 2U 438 x 87.5 x 815 |
|---|---|
| Processors and sockets | Supported processors: AMD EPYC ™ 9005 Server Processors AMD EPYC ™ 9004 Server Processors Dual processors - cTDP up to 400 W (-ACJ1) - cTDP up to 500 W (-ADJ1) [Note] If only 1 CPU is installed, some PCIe or memory functions might be unavailable. Processor socket: 2 x LGA 6096 Socket SP5 |
| Memory support | 24 x DIMM slots Support DDR5 RDIMM 12-Channel memory per processor AMD EPYC™ 9005: Up to 6400 MT/s AMD EPYC™ 9004: Up to 4800 MT/s |
| Network interfaces | Rear (G-SCM board - CDCR114): 2 x 1 Gb/s LAN (1 x Intel® I350-AM2) - Support NCSI function 1 x 10/100/1000 Mb/s Management LAN |
| Display interfaces | Integrated in ASPEED® AST2600 -1 x Mini-DP |

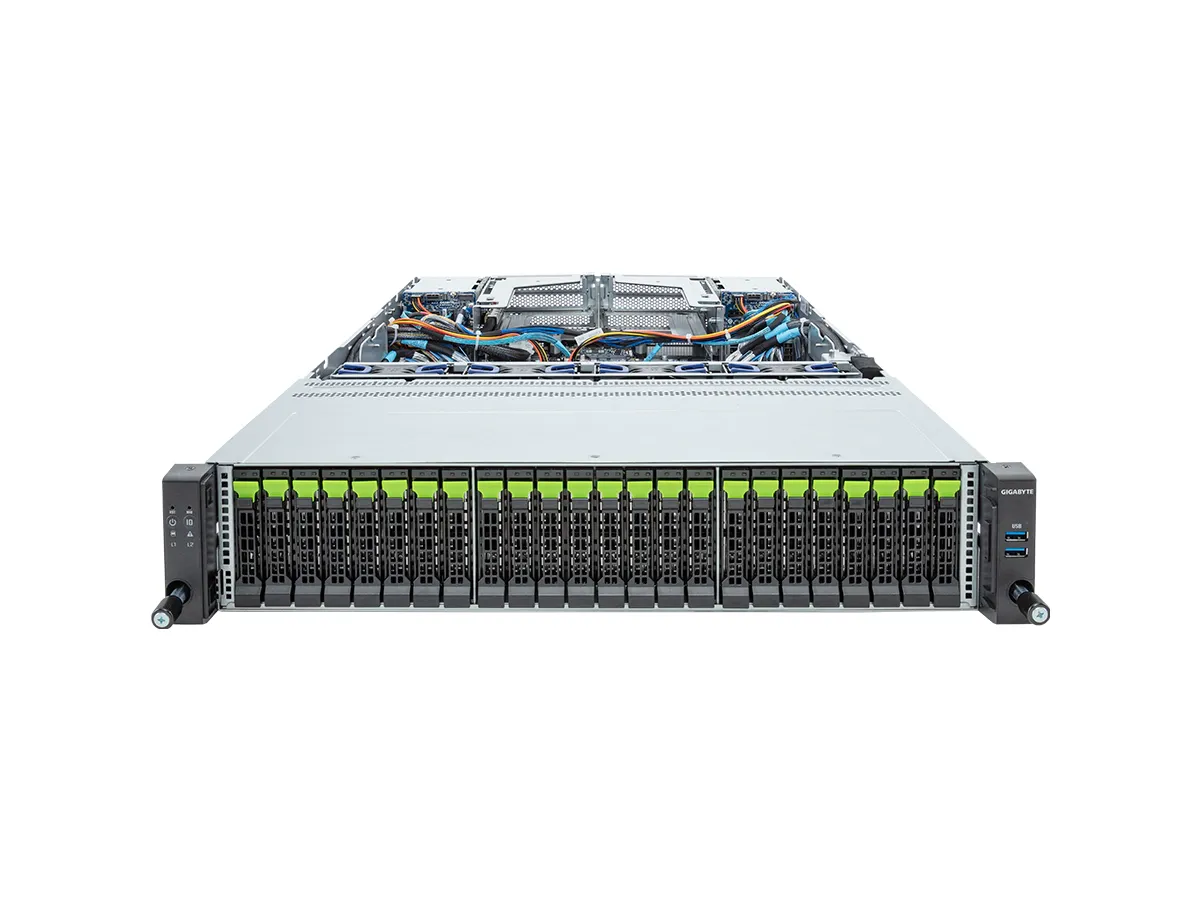

| Drive bays and interfaces | Front hot-swap: 24 x 2.5" Gen5 NVMe - (12 x NVMe from CPU_0, 12 x NVMe from CPU_1) Rear hot-swap: 4 x 2.5" SATA/SAS-4 [1] - (SATA via CRS2810 from CPU_1) Internal M.2: 1 x M.2 (2280/22110), PCIe Gen3 x4, from CPU_0 1 x M.2 (2280/22110), PCIe Gen3 x4, from CPU_1, occupied for SATA 1 x M.2 (2280/22110), PCIe Gen3 x2, from CPU_1 [1] SAS card is required to support SAS drives. [Note] SATA hotplug utility can be downloaded on support page. |
| SAS Interface | Require SAS add-in cards |
| RAID Supports | Require RAID add-in cards Optional compatible RAID Cards: NVMe/NVMe-oF RAID Cards with SupremeRAID™ by Graid Technology RAID Card models: SR-1000-FD32, SR-1010-FD32 Support RAID 0/1/5/6/10 |
| Expansion slots | PCIe cable: -1 x FHHL x16 (Gen5 x16), from CPU_0 1 x OCP NIC 3.0 (Gen5 x16), from CPU_0, disabled 1 x OCP NIC 3.0 (Gen5 x16), from CPU_1 - Supports NCSI function |
| Front interfaces | 2 x USB 3.2 Gen1 ports (Type-A) 1 x Power button with LED 1 x ID button with LED 1 x NMI button 1 x Reset button 2 x LAN activity LEDs 1 x Storage activity LED 1 x System status LED |
| Rear interfaces | G-SCM board - CDCR114: 2 x USB 3.2 Gen1 ports (Type-A) 1 x Mini-DP 2 x RJ45 ports 1 x MLAN port 1 x ID LED |
| Security module |
Warranty
Public manufacturer information does not specify the warranty term applicable to our supply channel. The supply region, channel and actual warranty service are confirmed in the supply contract.
