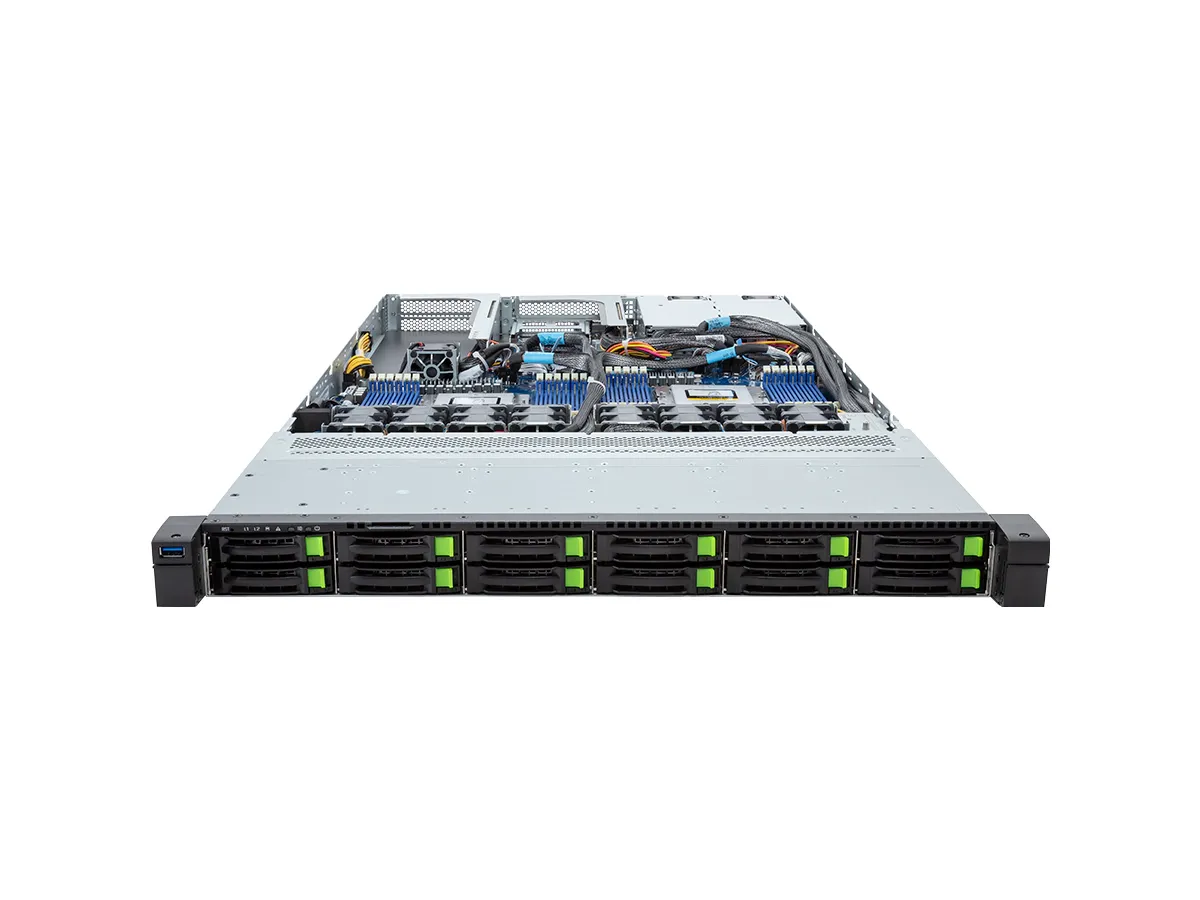

GIGABYTE R183-ZF1-AAJ1 (rev. 3.x) manufacturer External reference Figure 1

R183-ZF1-AAJ1 (rev. 3.x)GIGABYTE

GIGABYTE R183-ZF1-AAJ1 (rev. 3.x) Rack server

Model: R183-ZF1-AAJ1 (rev. 3.x)
Product series: R183 Series

Also known as: GIGABYTE R183-ZF1-AAJ1 (rev. 3.x)

GIGABYTE R183-ZF1-AAJ1 (rev. 3.x) is a rack server in the R183 Series series. Applications include enterprise computing and virtualization and cloud computing. Key specifications are listed below.

Key Architecture Highlights

Chassis dimensions (W × H × D): 1U 438 x 43.5 x 815
Memory support: 24 x DIMM slots DDR5 memory supported 12-Channel memory per processor AMD EPYC™ 9005: RDIMM: Up to 6400 MT/s AMD EPYC™ 9004: RDIMM: Up to 4800 MT/s
Network interfaces: Rear: 1 x 10/100/1000 Mbps Management LAN

Applications

Enterprise computing
Virtualization and cloud computing
Data center

Engineering Parameters

Chassis dimensions (W × H × D)	1U 438 x 43.5 x 815
Processors and sockets	Supported processors: AMD EPYC ™ 9005 Series Processors AMD EPYC ™ 9004 Series Processors Dual processor, cTDP up to 400W [1] [1] Please refer to the QVL on the support page or contact our sales representatives for verified CPU SKUs. [Note] If only 1 CPU is installed, some PCIe or memory functions might be unavailable. Processor socket: 2 x LGA 6096 Socket SP5
Memory support	24 x DIMM slots DDR5 memory supported 12-Channel memory per processor AMD EPYC™ 9005: RDIMM: Up to 6400 MT/s AMD EPYC™ 9004: RDIMM: Up to 4800 MT/s
Network interfaces	Rear: 1 x 10/100/1000 Mbps Management LAN
Display interfaces	Integrated in ASPEED® AST2600 -1 x Mini-DP
Drive bays and interfaces	Front hot-swap: 12 x 2.5" Gen5 NVMe/SATA/SAS-4 [1] - (4 x NVMe from CPU_0, 8 x NVMe from CPU_1) - (6 x SATA via CRS2810 from CPU_0) - (6 x SATA via CRS2810 from CPU_1) Internal M.2: 1 x M.2 (2280/22110), PCIe Gen3 x4, from CPU_0, occupied for SATA 1 x M.2 (2280), PCIe Gen3 x4, from CPU_1, occupied for SATA [1] SAS card is required to support SAS drives. [Note] SATA hotplug utility can be downloaded on support page.
SAS Interface	Require SAS add-in cards
RAID Supports	Require RAID add-in cards
Expansion slots	PCIe Cable x 3: -1 x FHFL x16 (Gen5 x16), from CPU_0, for GPUs -1 x FHFL x16 (Gen5 x16), from CPU_0 [1] -1 x FHHL x16 (Gen5 x16), from CPU_1 1 x OCP NIC 3.0 (Gen5 x16), from CPU_0 - Supports NCSI function [1] Blocked when a Dual slot GPU is installed.
Front interfaces	1 x USB 3.2 Gen1 port (Type-A) 1 x Power button with LED 1 x ID button with LED 1 x Reset button 1 x Storage activity LED 1 x System status LED
Rear interfaces	I/O board - CBG70: 2 x USB 3.2 Gen1 ports (Type-A) 1 x Mini-DP 1 x MLAN port 1 x ID LED
Security module	1 x TPM header with SPI interface - Optional TPM2.0 kit: CTM010

Warranty

Public manufacturer information does not specify the warranty term applicable to our supply channel. The supply region, channel and actual warranty service are confirmed in the supply contract.
