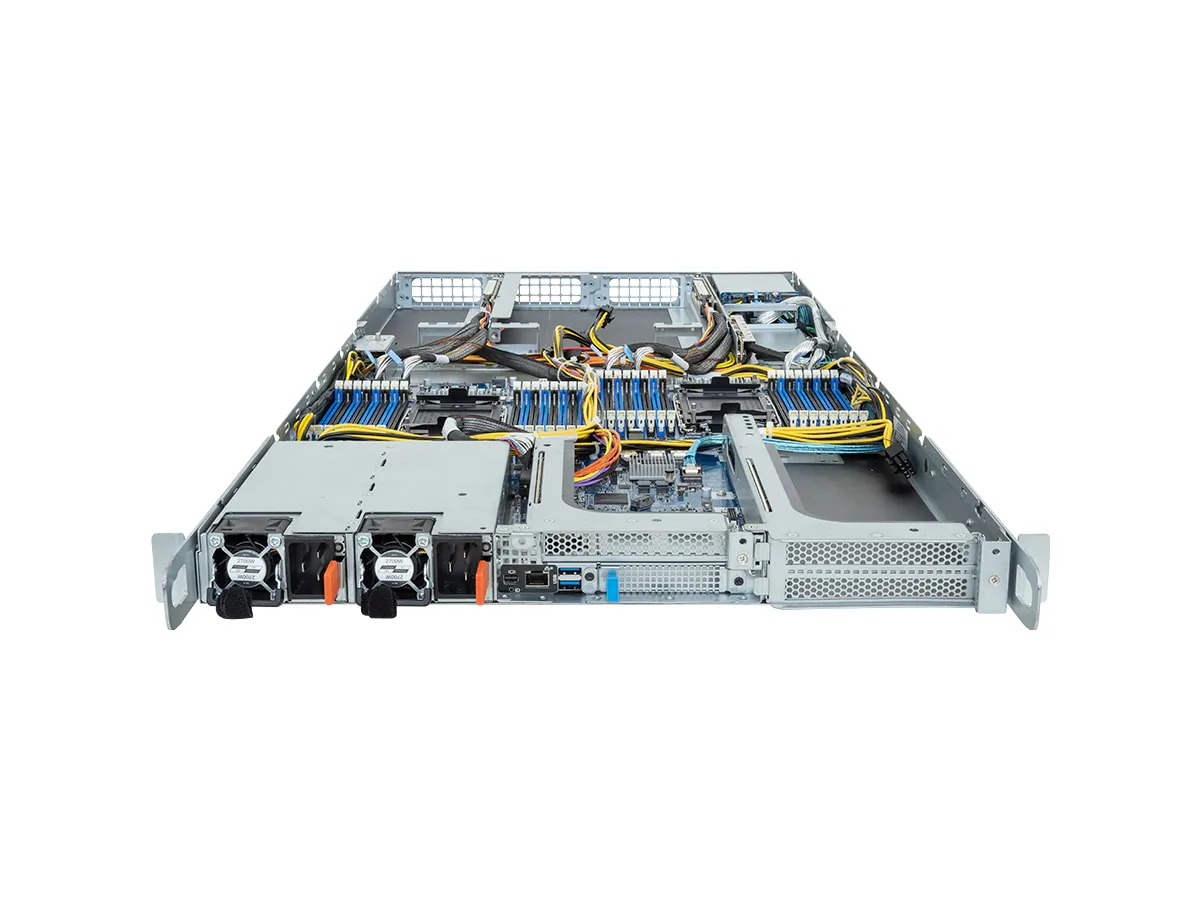

Key Architecture Highlights
- Chassis dimensions (W × H × D): 1U 448 x 43.5 x 900
- Network interfaces: Top: 1 x 10/100/1000 Mbps Management LAN
- Display interfaces: Integrated in ASPEED® AST2600 -1 x Mini-DP
Applications
- Enterprise computing
- Virtualization and cloud computing
- Data center
Engineering Parameters
| Chassis dimensions (W × H × D) | 1U 448 x 43.5 x 900 |
|---|---|
| Processors and sockets | Supported processors: 5th Generation Intel ® Xeon ® Scalable Processors 4th Generation Intel ® Xeon ® Scalable Processors Intel ® Xeon ® CPU Ma x Series Dual processor, TDP up to 350W [Note] If only 1 CPU is installed, some PCIe or memory functions might be unavailable. Processor socket: 2 x LGA 4677 Socket E |
| Memory support | 32 x DIMM slots DDR5 memory supported 8-Channel memory per processor 5th Gen Intel® Xeon®: RDIMM: Up to 5600 MT/s (1DPC), 4400 MT/s (2DPC) 4th Gen Intel® Xeon®: RDIMM: Up to 4800 MT/s (1DPC), 4400 MT/s (2DPC) Intel® Xeon® Max Series: RDIMM: Up to 4800 MT/s (1DPC), 4400 MT/s (2DPC) |
| Network interfaces | Top: 1 x 10/100/1000 Mbps Management LAN |
| Display interfaces | Integrated in ASPEED® AST2600 -1 x Mini-DP |
| Drive bays and interfaces | Bottom hot-swap: 2 x 2.5" Gen5 NVMe/SATA/SAS-4 [1] - (NVMe from CPU_0) [1] SAS card is required to support SAS devices. |
| SAS Interface | Require SAS add-in cards |
| RAID Supports | Intel® SATA RAID 0/1/10/5 Onboard VROC key header Support optional RAID add-in cards |
| Expansion slots | PCIe Cable x 4: -1 x FHFL x16 (Gen5 x16), from CPU_0, for GPUs -2 x FHFL x16 (Gen5 x16), from CPU_1, for GPUs -1 x Internal LP x16 (Gen4 x8), from CPU_0 Riser Card CRC1240: -1 x FHHL x16 (Gen5 x16), from CPU_1 Riser Card CRS102B: -1 x FHFL x16 (Gen5 x16), from CPU_0, for GPUs -1 x FHFL x16 (Gen5 x16), from CPU_0 [1] 1 x OCP NIC 3.0 (Gen5 x16), from CPU_0 - Supports NCSI function [1] Blocked when a Dual slot GPU is installed. |
| Security module | 1 x TPM header with SPI interface - Optional TPM2.0 kit: CTM010 |
| Power supply specifications | Dual 2700W 80 PLUS Titanium redundant power supply [1] AC Input: -100-127V~/ 12A, 50-60Hz -200-240V~/ 16A, 50-60Hz DC Input: (Only for China) -240Vdc/ 16A DC Output: - Max 1008W/ 100-127V~ +12V/ 84A +12Vsb/ 3A - Max 2700W/ 200-240V~ or 240Vdc Input +12V/ 225A +12Vsb/ 3A [1] The system power supply requires C19 power cord. |
Warranty
Public manufacturer information does not specify the warranty term applicable to our supply channel. The supply region, channel and actual warranty service are confirmed in the supply contract.
