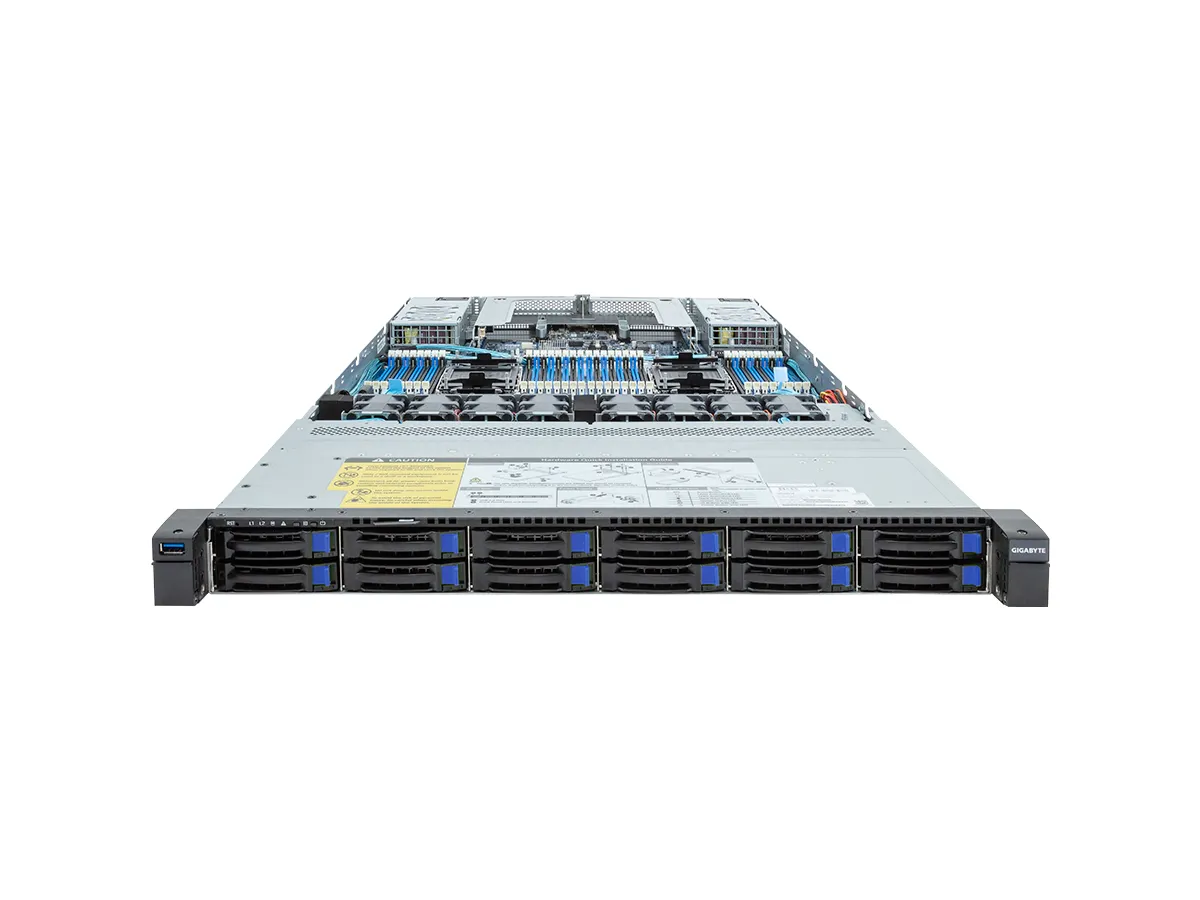

Key Architecture Highlights
- Chassis dimensions (W × H × D): 1U 438 x 43.5 x 815
- Network interfaces: Rear (G-SCM board - CDCR112): 2 x 1Gb/s LAN (1 x Intel® I350-AM2) - Support NCSI function 1 x 10/100/1000 Mbps Management LAN
- Display interfaces: Integrated in ASPEED® AST2600 -1 x Mini-DP
Applications
- Enterprise computing
- Virtualization and cloud computing
- Data center
Engineering Parameters
| Chassis dimensions (W × H × D) | 1U 438 x 43.5 x 815 |
|---|---|
| Processors and sockets | Supported processors: 5th Generation Intel ® Xeon ® Scalable Processors 4th Generation Intel ® Xeon ® Scalable Processors Intel ® Xeon ® CPU Ma x Series Dual processor, TDP up to 350W [Note] If only 1 CPU is installed, some PCIe or memory functions might be unavailable. Processor socket: 2 x LGA 4677 Socket E |
| Memory support | 32 x DIMM slots DDR5 memory supported 8-Channel memory per processor 5th Gen Intel® Xeon®: RDIMM: Up to 5600 MT/s (1DPC), 4400 MT/s (2DPC) [1] 4th Gen Intel® Xeon®: RDIMM: Up to 4800 MT/s (1DPC), 4400 MT/s (2DPC) Intel® Xeon® Max Series: RDIMM: Up to 4800 MT/s (1DPC), 4400 MT/s (2DPC) [1] 5600 MT/s support under 2DPC configuration requires verified memory and BIOS setup. Please refer to the QVL for more information. |
| Network interfaces | Rear (G-SCM board - CDCR112): 2 x 1Gb/s LAN (1 x Intel® I350-AM2) - Support NCSI function 1 x 10/100/1000 Mbps Management LAN |
| Display interfaces | Integrated in ASPEED® AST2600 -1 x Mini-DP |
| Drive bays and interfaces | Front hot-swap: 12 x 2.5" SATA/SAS [1] [1] SAS card is required to support SAS drives. |
| SAS Interface | Require SAS add-in cards |
| RAID Supports | Intel® SATA RAID 0/1/10/5 Onboard VROC key header |
| Expansion slots | Riser Card CRS101J: -1 x FHHL x16 (Gen5 x16), from CPU_0 Riser Card CRS101K: -1 x FHHL x16 (Gen5 x16), from CPU_1 1 x OCP NIC 3.0 (Gen5 x16), from CPU_0 - Supports NCSI function 1 x OCP NIC 3.0 (Gen5 x16), from CPU_1 - Supports NCSI function |
| Front interfaces | 1 x USB 3.2 Gen1 port (Type-A) 1 x Power button with LED 1 x ID button with LED 1 x Reset button 2 x LAN activity LEDs 1 x Storage activity LED 1 x System status LED |
| Rear interfaces | G-SCM board - CDCR112: 2 x USB 3.2 Gen1 ports (Type-A) 1 x Mini-DP 2 x RJ45 ports 1 x MLAN port 1 x ID LED |
| Security module | 1 x TPM header with SPI interface - Optional TPM2.0 kit: CTM010 |
Warranty
Public manufacturer information does not specify the warranty term applicable to our supply channel. The supply region, channel and actual warranty service are confirmed in the supply contract.
