Key Architecture Highlights
- Chassis dimensions (W × H × D): 2U 448 x 87.5 x 800
- Processors and sockets: Supported processors: AMD EPYCTM 9006 SP7 Server processors Single processor, PPT up to 600 W processor socket :1 x LGA 7536 Socket SP7
- Memory support: 12 x DIMM slots Support DDR5 RDIMM/MRDIMM [1] 12-Channel memory per processor RDIMM: Up to 8000 MT/s MRDIMM: Up to 12800 MT/s [1] MRDIMMs are supported only on select CPU SKUs.
Applications
- AI training and inference
- High-performance computing
- Data center
Engineering Parameters
| Chassis dimensions (W × H × D) | 2U 448 x 87.5 x 800 |
|---|---|
| Processors and sockets | Supported processors: AMD EPYCTM 9006 SP7 Server processors Single processor, PPT up to 600 W processor socket :1 x LGA 7536 Socket SP7 |
| Memory support | 12 x DIMM slots Support DDR5 RDIMM/MRDIMM [1] 12-Channel memory per processor RDIMM: Up to 8000 MT/s MRDIMM: Up to 12800 MT/s [1] MRDIMMs are supported only on select CPU SKUs. |
| Network interfaces | Rear: 2 x 10 Gb/s LAN (1 x Broadcom® BCM57416) - Support NCSI function 1 x Management LAN |
| Display interfaces | Integrated in ASPEED® AST2700 -1 x VGA port |
| Drive bays and interfaces | Front hot-swap: 2 x 2.5" Gen5 NVMe Optional front hot-swap: 4 x 2.5" Gen5 NVMe/SATA/SAS-4 or 6 x 2.5" SATA/SAS-4 [1] Internal M.2: 1 x M.2 (2280/22110), PCIe Gen4 x2 [1] Storage card required to support optional drives. Only one card supported, and total drive bandwidth limited to 16i. [Note] An alternative SKU supports 4 x native NVMe drives with LP PCIe slots. Please contact technical support for more information. |
| Expansion slots | 4 x FHFL x16 (Gen6 x16), for GPUs 1 x LP x16 (Gen6 x16) 1 x LP x16 (Gen6 x8) [Note] GPU video output ports are not available due to mechanical limitations. [Note] The system is only validated with a uniform GPU model. |
| Front interfaces | 1 x Power button with LED 1 x ID button with LED 1 x NMI button 1 x Reset button 2 x LAN activity LEDs 1 x Storage activity LED 1 x System status LED |

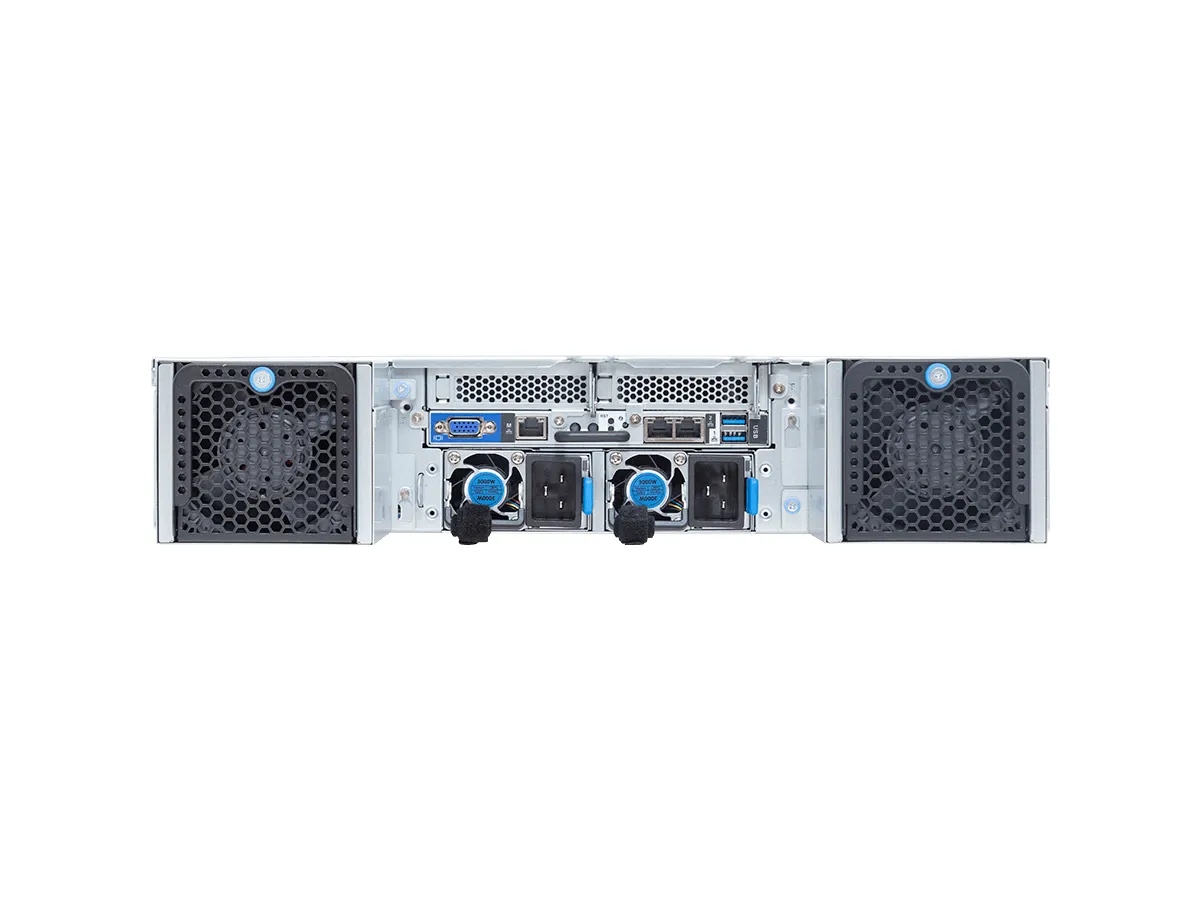

| Rear interfaces | 2 x USB 3.2 Gen1 ports (Type-A) 1 x VGA port 1 x Serial port 2 x RJ45 ports 1 x MLAN port 1 x Power button with LED 1 x ID button with LED 1 x NMI button 1 x Reset button 1 x System status LED |
| Security module | 1 x TPM header with SPI interface - Optional TPM 2.0 kit: CTM012 |
| Power supply specifications | 2 x 3000 W 80 PLUS Titanium redundant power supplies [1] AC Input: -100-127V~, 15.5A, 50-60Hz -200-220V~, 15.5A, 50-60Hz -220-240V~, 15.5A, 50-60Hz DC Input: (Only for China) -240Vdc, 15.5A DC Output: - Max 1000W/ 100-127V~ +12.2V/ 81A +12Vsb/ 3A - Max 2600W/ 200-220V~ +12.2V/ 213A +12Vsb/ 3A - Max 3000W/ 220-240V~ or 240Vdc Input +12.2V/ 245A +12Vsb/ 3A [1] The system power supply requires C19 power cord. |
Warranty
Public manufacturer information does not specify the warranty term applicable to our supply channel. The supply region, channel and actual warranty service are confirmed in the supply contract.
