Key Architecture Highlights
- Camera: ● 12MP camera ; ● 120° horizontal field of view ; ● 95° vertical field of view ; ● Speaker tracking
- Video Resolution: ● Video stream: 1920 x 1080 at 30 fps ; ● Content stream: 3840 x 2160 at 15 fps ; ● 3840 x 2160 at 15 fps content decode from Webex
- Video/audio protocols: Room Bar - Video standards: ● H.263, H.264, AV1; Room Bar - Audio standards: ● G.711, G.722, G.722.1, G.729, AAC-LD, and Opus
Applications

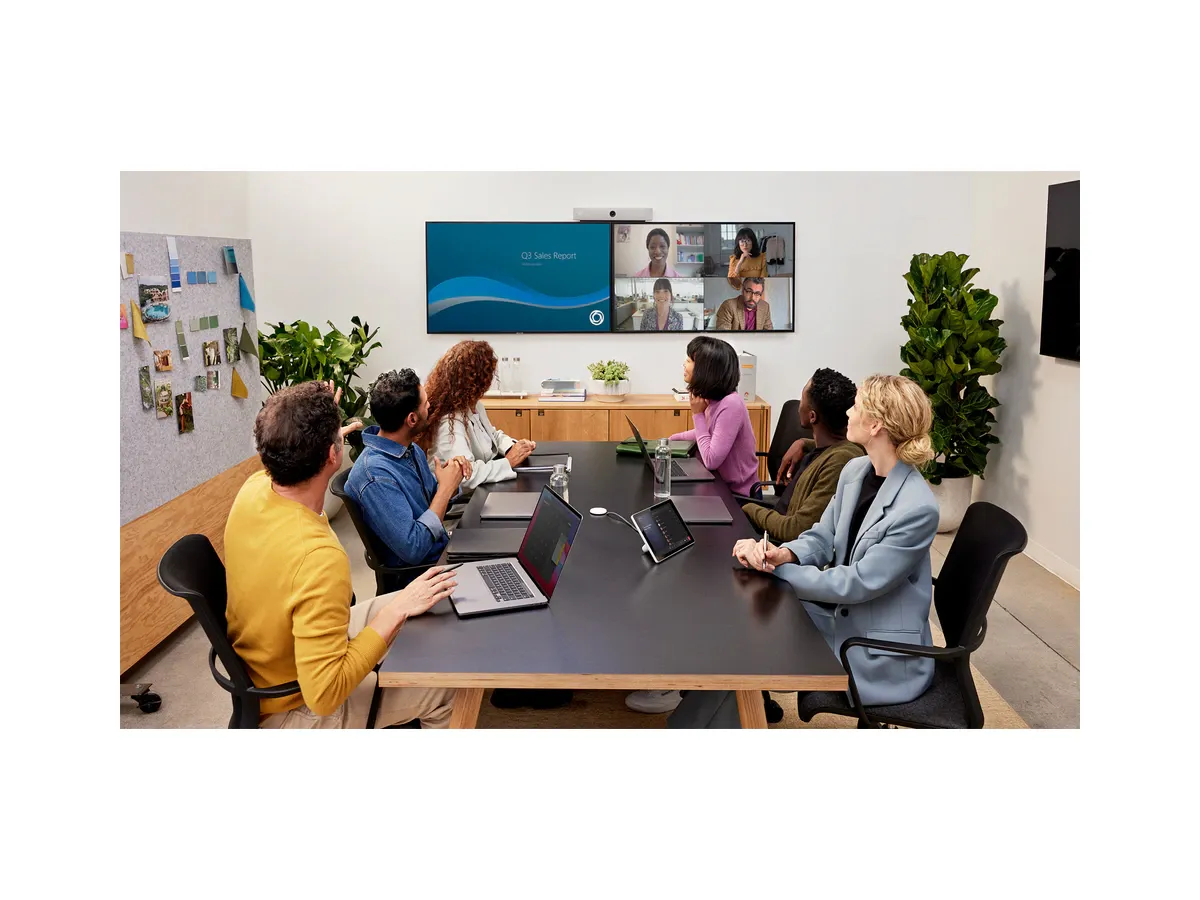

- Video conferencing
- Mixed office collaboration
- Whiteboard and content sharing
Engineering Parameters
| Camera | ● 12MP camera ; ● 120° horizontal field of view ; ● 95° vertical field of view ; ● Speaker tracking |
|---|---|
| Video Resolution | ● Video stream: 1920 x 1080 at 30 fps ; ● Content stream: 3840 x 2160 at 15 fps ; ● 3840 x 2160 at 15 fps content decode from Webex |
| Content sharing/ BYOD | ● Ability to provide camera, microphone, and speakers over one USB-C cable to a connected computer;● USB-C passthrough and content sharing with the same cable;● Extension of display (3840 x 2160 at 30 fps) (computer must support Alt-mode Display Port);● USB-C support Maximum 3840 x 2160 at 30 fps;● When ordering the Cisco Room Bar for BYOD-only mode, the Room Navigator touch panel is not included in the solution and meetings can be hosted from a laptop connected to the video bar via a USB-C cable |
| Video Input | ● 1x HDMI input Supports formats Up to maximum 3840 x 2160 at 30 fps, including 1920 x 1080 at 60 fps; ● 1x USB -C input Supports formats Up to maximum 3840 x 2160 at 30 fps, including 1920 x 1080 at 60 fps; ● Consumer Electronics Control (CEC) 2.0 |
| Video Output | ● 2x HDMI outputs supporting formats Max 3840 x 2160 at 60 fps; • Live video resolutions (encode and decode) Max 1920 x 1080 at 30 fps and 60 fps; • Consumer Electronics Control (CEC) 2.0; • Touchscreen compatible (when used together with USB-A input for touch signaling); |
| Audio system | ● Stereo loudspeaker system with 2 high-quality full range drivers supporting directional audio; ● Loudspeaker system frequency response 100 Hz to 20 kHz [± 3 dB]; ● Ma x output Sound Pressure Level 93 dB; ● 4-element beamforming microphone array for crystal clear speech pick-up. Additional, front-facing microphones to support speaker tracking; Note: The internal microphone array is optimized for use in huddle spaces and small meeting rooms with Up to 5 people seated within 3 meters from the device. In mid-sized meeting rooms with more than 5 people, we recommend adding an external microphone to ensure the best audio experience. Please note that room acoustic conditions and background noise level also impact the speech pick-up quality. Consult Cisco Project Workplace for guidance on best practices. |
| Audio Interface | Room Bar - Audio inputs: ● 1 HDMI input ; ● 1 analog microphone input ; ● 1 DisplayPort/USB-C input ; ● 1 USB-A input ; ● Bluetooth ; ® - Not available on Non Radio Version ; ● 1x PoE supporting audio over IP for one Cisco IP microphone Room Bar - Audio outputs: ● 1 DisplayPort/USB-C output ; ● 1 USB-A output ; ● Bluetooth ; ® - Not available on Non Radio Version ; |
Warranty
The manufacturer's hardware warranty, software and subscription services must be confirmed separately; the specific timeframe, region, replacement method and eligibility are based on the manufacturer's terms, serial numbers and actual supply contracts, and the company's service offerings have not yet been confirmed.
