Key Architecture Highlights
- Data Interface: 8 x 10M/100M/; 1GBASE-T Ethernet interfaces (RJ-45), 8 x 1/10/25 Gigabit (SFP) Ethernet interfaces
- Interface Expansion: 10G/25G/40G SFP+, 4x40G NM
- Management interface: 1 x 1/10G SFP
Applications
- Border security for businesses
- Security of the Branch
- VPN access
Engineering Parameters
| Data Interface | 8 x 10M/100M/; 1GBASE-T Ethernet interfaces (RJ-45), 8 x 1/10/25 Gigabit (SFP) Ethernet interfaces |
|---|---|
| Interface Expansion | 10G/25G/40G SFP+, 4x40G NM |
| Management interface | 1 x 1/10G SFP |
| Firewall throughput | FTD - Firewall + AVC throughput (1024B):45.0 Gbps FTD - Firewall + AVC + IPS throughput (1024B):45.0 Gbps ASA - State detection of firewall throughput:49.0 Gbps(1500B UDP) ASA - State detection of firewall throughput (multiprotocol):43.0 Gbps |
| IPS Throughput | FTD - NGIPS throughput (1024B): 45.0 Gbps |
| TLS Decrypt Performance | FTD - TLS: 11.5 Gbps |
| IPsec VPN Throughput | FTD - IPsec VPN throughput (1024B TCP w/Fastpath):22.4 Gbps FTD - VPN unloaded expected IPsec throughput (1024B TCP w/Fastpath) with VPN Offload (FTD 7.2):39.4 Gbps ASA - IPsec VPN throughput (450B UDP L2L test):17 Gbps |
| Concurrent connections | FTD - Open it. AVC It's... Maximum Side session: 10 million ASA - Firewall. Concurrent connections: 10 million |
| New connections per second | FTD - Opening new connections per second to AVC:300,000 ASA - new connections per second:1,100,000 |
| VPN Yeah. Including End | The FTD - VPN peer limit is 20,000 ASA - VPN peer limit is 20,000 |
| High availability support | The Cisco Secure Firewall 3100 Series allows clustering of up to 8 chassis (no clustering on 3105) ASA - High availability: Active/active and active/standby |
| Internal Storage | 1x 900 GB, 1x spare slot |

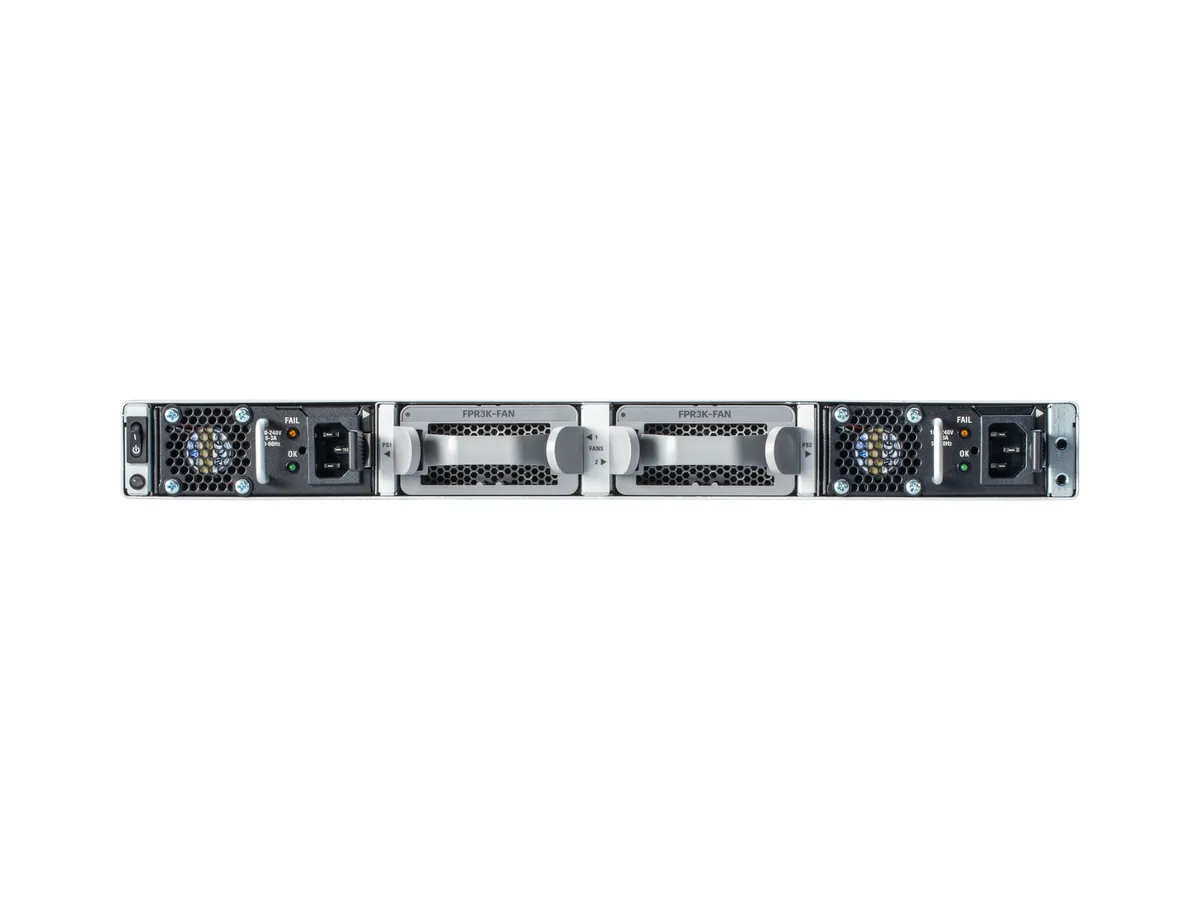

| Power supply options | Dual 400W AC.; Single/dual 400W DC optional |
| Input voltage | 100 to 240V AC |
| Cooling | 2 Hot-swappable fan modules (with 2 fans each) |
| Installation form factor |
Warranty
The manufacturer's hardware warranty, software and subscription services must be confirmed separately; the specific timeframe, region, replacement method and eligibility are based on the manufacturer's terms, serial numbers and actual supply contracts, and the company's service offerings have not yet been confirmed.
