Key Architecture Highlights

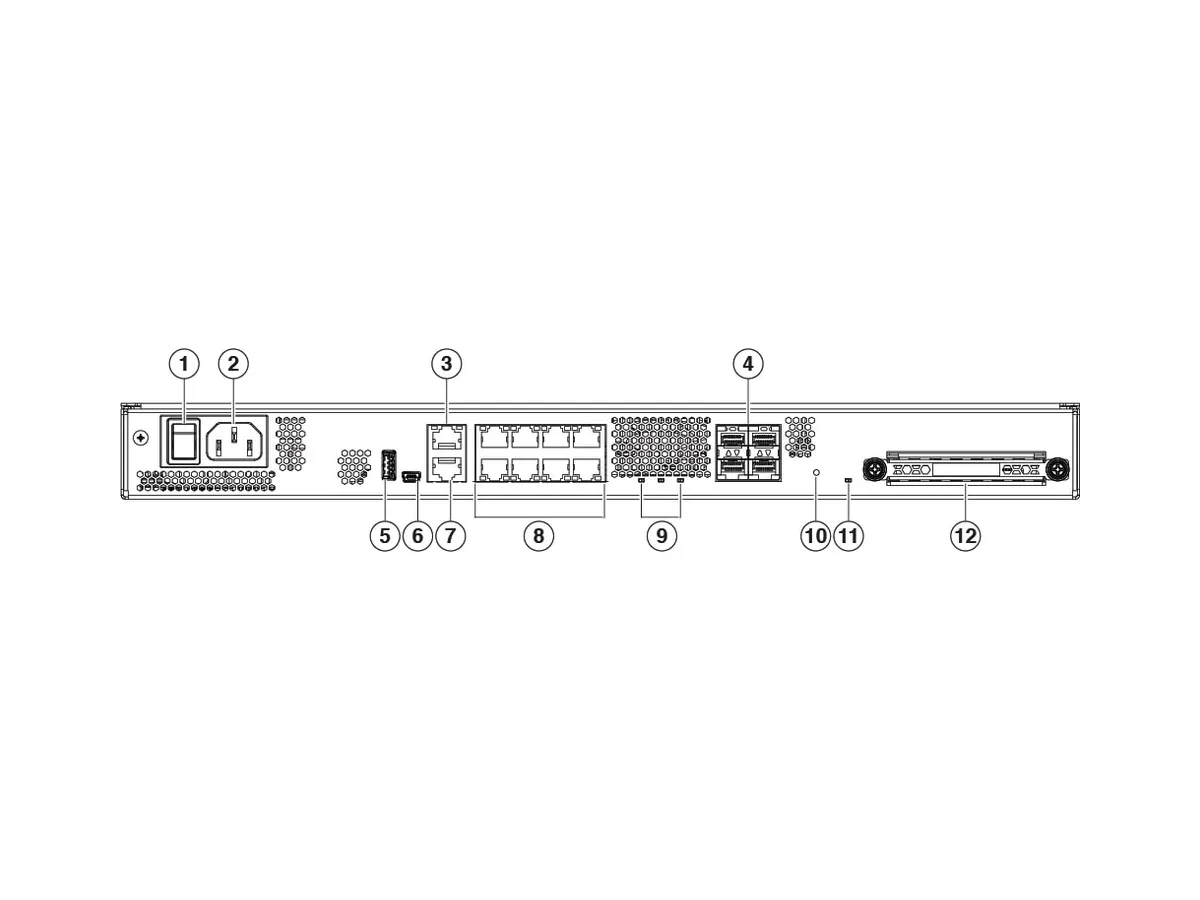

- Data Interface: 8 x 1000BASE-T; 4 x SFP
- Management interface: 1x 1000BASE-T; 1x Serial console (RJ-45)
- Firewall throughput: FTD - Firewall + AVC throughput (1024B): 2.3 Gbps FTD - Firewall + AVC + IPS throughput (1024B):2.3 Gbps ASA - State detection of firewall throughput: 4.5 Gbps 1500 B UDP ASA - State detection of firewall throughput (multiprotocol):2.5 Gbps
Applications
- Border security for businesses
- Remote Branch Security
- VPN access
Engineering Parameters
| Data Interface | 8 x 1000BASE-T; 4 x SFP |
|---|---|
| Management interface | 1x 1000BASE-T; 1x Serial console (RJ-45) |
| Firewall throughput | FTD - Firewall + AVC throughput (1024B): 2.3 Gbps FTD - Firewall + AVC + IPS throughput (1024B):2.3 Gbps ASA - State detection of firewall throughput: 4.5 Gbps 1500 B UDP ASA - State detection of firewall throughput (multiprotocol):2.5 Gbps |
| IPS Throughput | FTD - NGIPS throughput (1024B): 2.6 Gbps |
| IPsec VPN Throughput | FTD - IPsec VPN Throughput (1024B TCP w / Fastpath): 1.2 Gbps ASA - IPsec VPN Throughput (450B UDP L2L test): 1 Gbps |
| Concurrent connections | FTD - Opening the largest concurrent session in AVC:200K ASA - Firewall concurrent connections:200,000 |
| New connections per second | FTD - Opening new connections per second for AVC: 15K ASA - new connections per second: 75,000 |
| VPN Yeah. Including End | The FTD - VPN peer limit is 150 ASA - VPN peer limit is 150. |
| High availability support | FTD - High Availability with Cluster: Active/standby ASA |
| Internal Storage | 1 x 200 GB |
| Power supply options | Integrated, single AC input |
| Input voltage | 100 to 240V AC |
| The whole plane. Power consumption | 100W |
| Cooling | 1 integrated fan |
| Installation form factor | Rack mount, 1U |
| Dimensions | 1.72 x 17.2 x 10.58 in. |
| Reference weight | 8 lb (3.6 kg) |
| Operating temperature | 32 to 104°F ; (0 to 40°C) |
Warranty
According to Cisco's manufacturer limited hardware warranty policy, hardware and software/subscription services are confirmed respectively; actual deadlines, regions, replacement methods and support eligibility are available in serial numbers, manufacturer terms and supply contracts, and actual service plans have not yet been confirmed.
