Key Architecture Highlights
- Port configuration: Downlink port count / type: 48 ports PoE+ ENERGY STAR certified uplink port configuration: modular uplink
- Switching capacity: Single switching capacity: 256 Gbps with stacked switching capacity: 736 Gbps
- Forwarding rate: Single forwarding rate: 190.47 Mpps with stacked forwarding rate: 547.62 Mpps
Applications
- Access to the campus
- High-density office network
- PoE terminal power input
Engineering Parameters
| Port configuration | Downlink port count / type: 48 ports PoE+ ENERGY STAR certified uplink port configuration: modular uplink |
|---|---|
| Switching capacity | Single switching capacity: 256 Gbps with stacked switching capacity: 736 Gbps |
| Forwarding rate | Single forwarding rate: 190.47 Mpps with stacked forwarding rate: 547.62 Mpps |

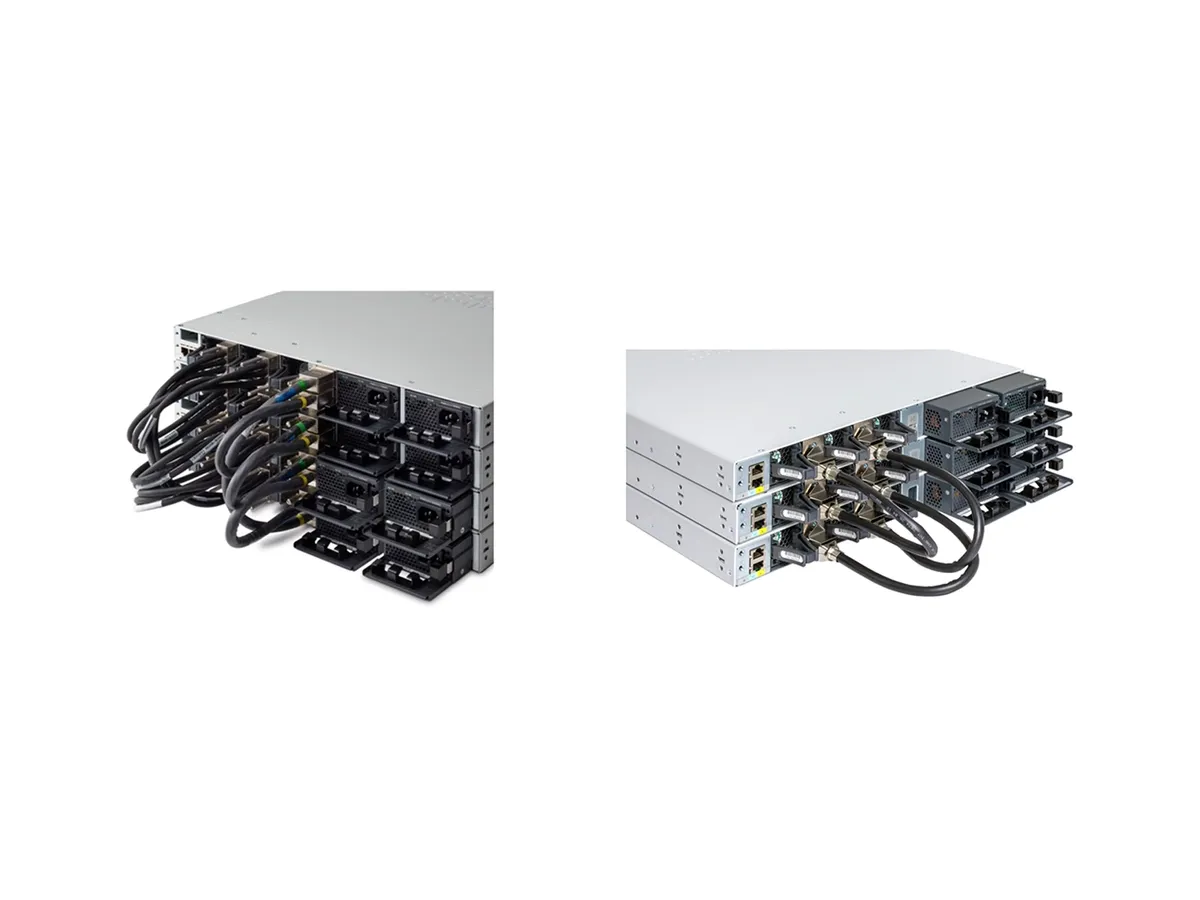

| Stacking support | StackWise-480 StackBandwidth Support: 480 Gbps Stack Member Upper Limit: 8 Stack Member Conditions of Use: Other C9300 SKUs with same license level; C9300 higher-scale SKUs only stack with other like higher-scale models |
| PoE Budget | PWR-C1-1100 WAC-P - Available with PoE budget: 822W PWR-C1-715 WAC-P - Available with PoE budget: 437W |
| MAC Address Capacity | 32,000 |
| Routing table capacity | IPv4 routing scale: 32 000 (24,000 direct routes and 8000 indirect routes) IPv6 routing entries: 16,000 |
| VLAN Capacity | 4094 |
| Packet buffer | 16-MB buffer for 24- or 48-port Gigabit Ethernet models; 32-MB buffer for 24- and 48-port Multigigabit |
| System memory ／ Storage | DRAM memory: 8 GB Flash storage: 16 GB |

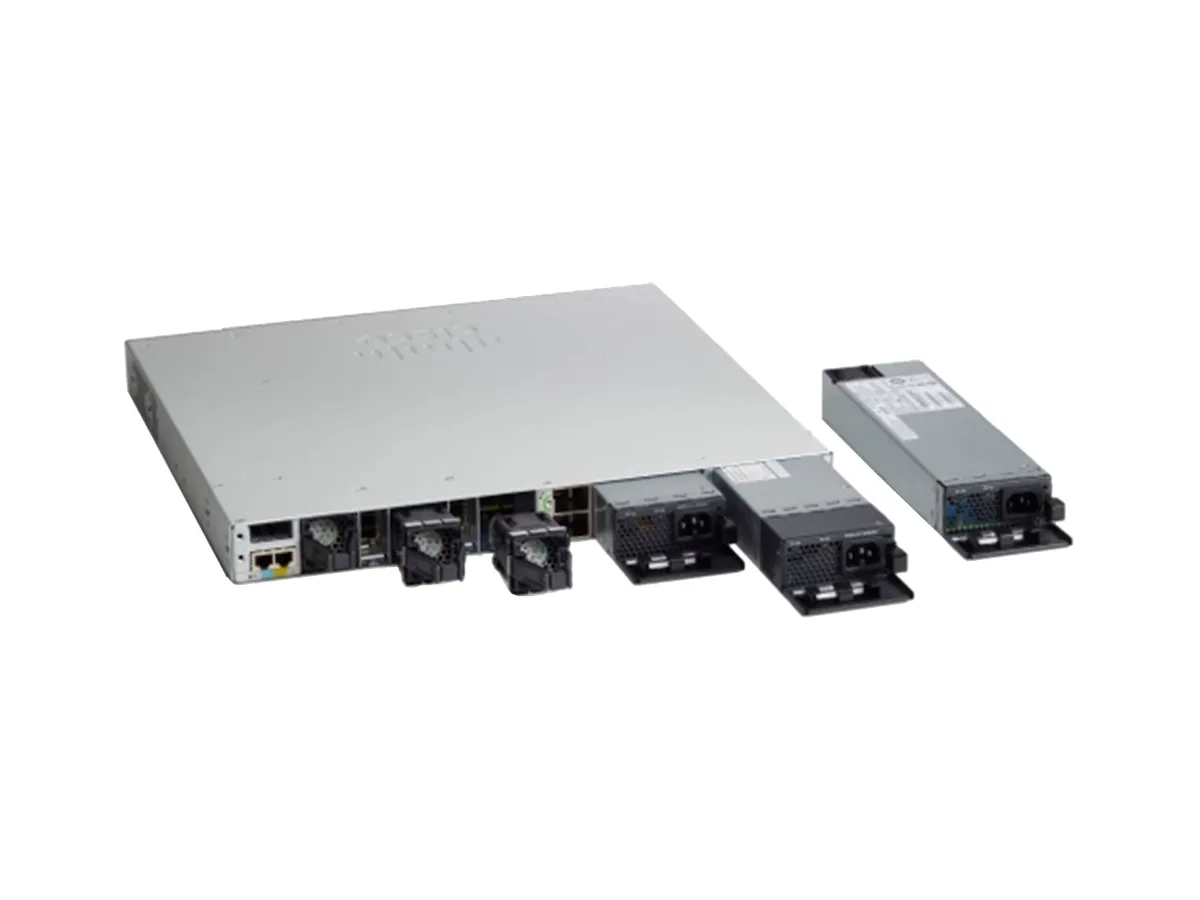

| Power supply support | 715W AC |
| Dimensions | 4.4 x 44.5 x 40.9 cm |
| Reference weight | The default power supply weight (kg): 7.59 kg |
Warranty
Manufacturers listed the enhanced limited lifetime hardware warranty (E-LLW) for original customer retention and manufacturer terms. The post-sale deadlines, regional hardware replacement, start time and 90 days of basic TAC support are preserved as originally scheduled; the company's actual supply warranty and service eligibility have not been confirmed.
