Key Architecture Highlights
- Port configuration: downlink port count / type: 24 ports All ports PoE+ uplink port configuration:4 x 1G Fixed uplink
- Switching capacity: Single aircraft Switching capacity: 56 Gbps; A stack of them. Switching capacity: 136 Gbps
- Forwarding rate: Single aircraft Forwarding rate: 41.67 Mpps; A stack of them. Forwarding rate: 101 Mpps
Applications
- Access to the campus
- Office terminal network
- PoE terminal power input
Engineering Parameters
| Port configuration | downlink port count / type: 24 ports All ports PoE+ uplink port configuration:4 x 1G Fixed uplink |
|---|---|
| Switching capacity | Single aircraft Switching capacity: 56 Gbps A stack of them. Switching capacity: 136 Gbps |
| Forwarding rate | Single aircraft Forwarding rate: 41.67 Mpps A stack of them. Forwarding rate: 101 Mpps |

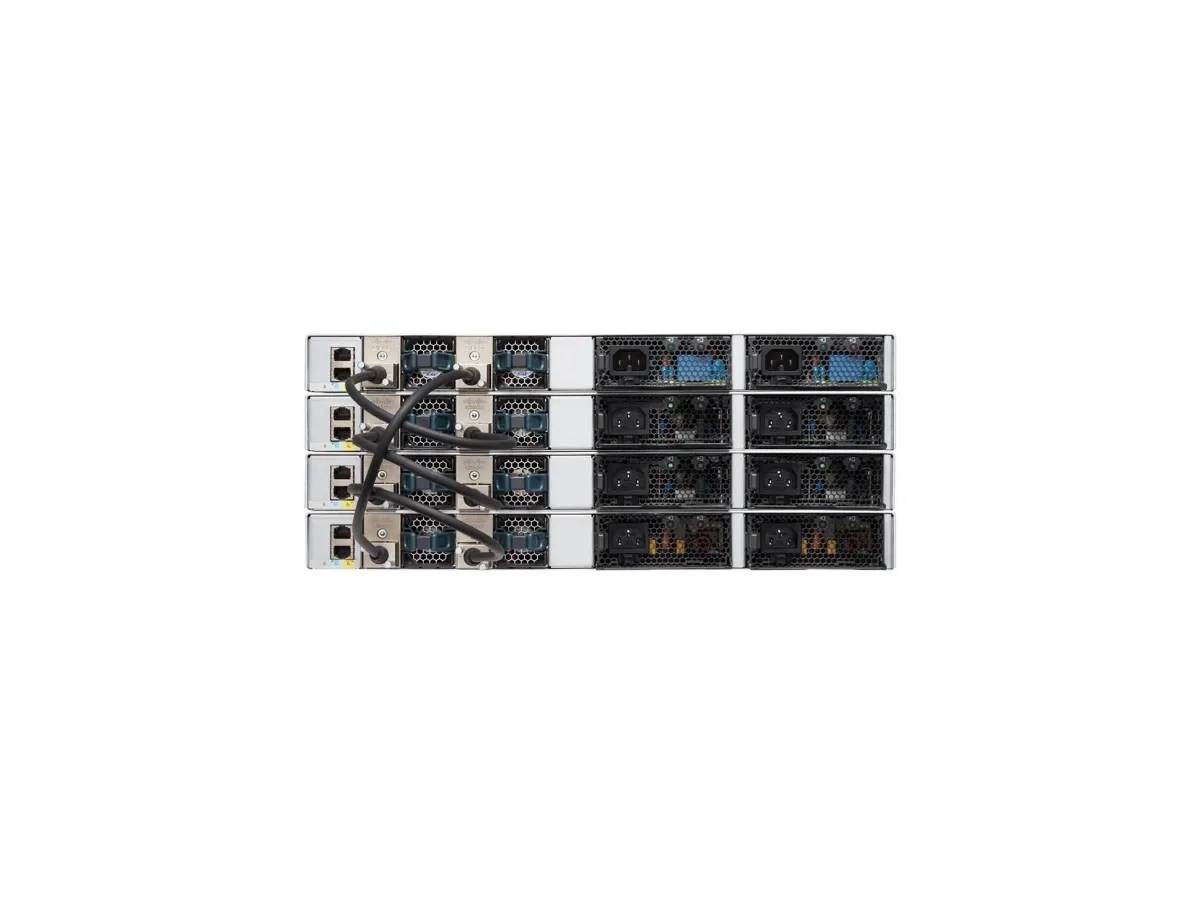

| Stacking support | StackWise-80 StackBandwidth Support:80 Gbps Stack Members Maximum: 8 Stack Members Conditions of use: Other C9200L models with ; same license level |
| PoE Budget | PWR-C5-600WAC - PoE budget at the time of main power supply only:370W PWR-C5-600WAC - PoE budget after the second power supply increase:740W PWR-C5-715WDC = 2 - PoE budget at the time of main power supply only:485W PWR-C5-715WDC = 2 - PoE budget after the second power supply increase:740W |
| MAC Address Capacity | 16,000 |
| Routing table capacity | IPv4 routing scale: ARP and learning routes: 11,000 (8,000 direct routes and 3,000 indirect routes) IPv4 routing entries: 3,000 |
| VLAN Capacity | 4094 |
| Packet buffer | 6 MB buffers for 24- or 48- port Gigabit Ethernet models, 12 MB buffers for 24 or 48 port multigigabit models |
| System memory ／ Storage | DRAM memory: 2 GB Flash storage: 4 GB |

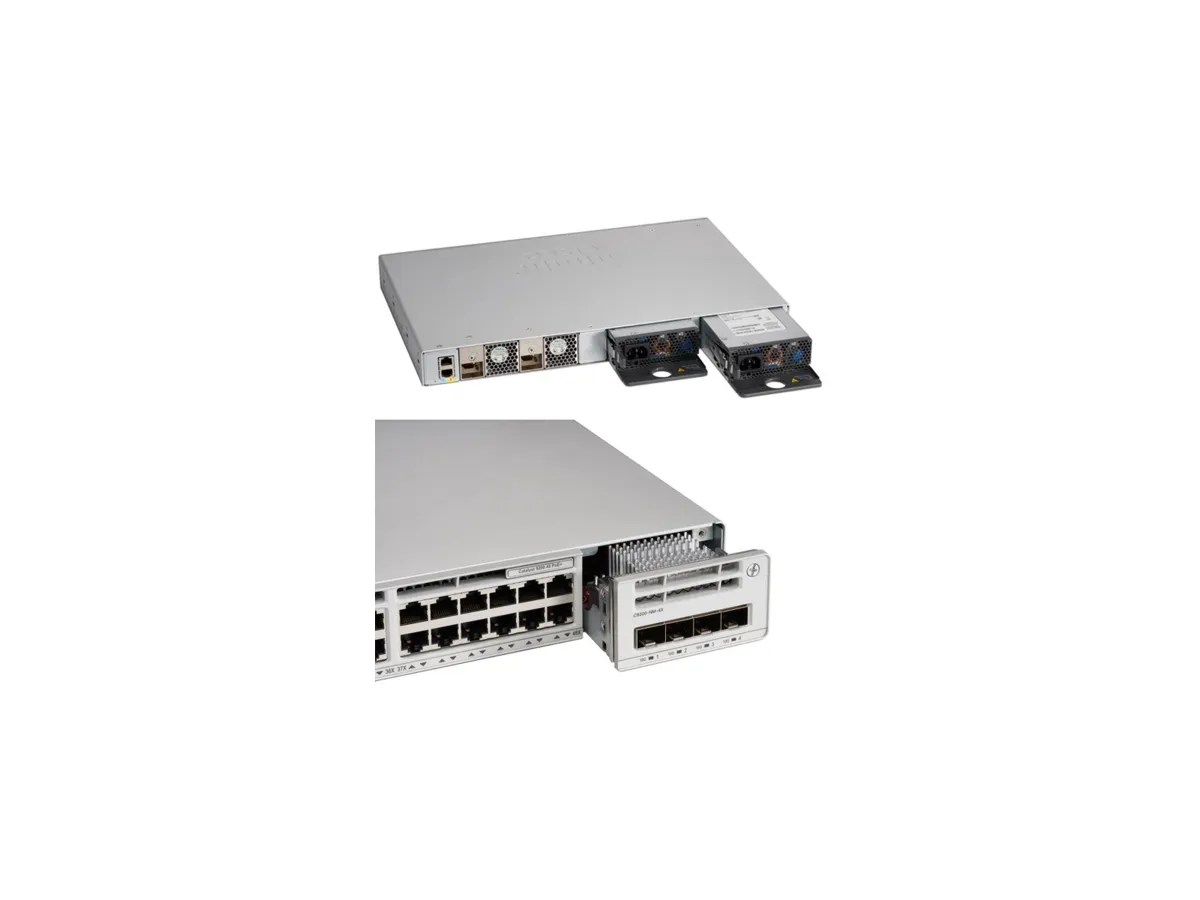

| Power supply support | PWR-C5-600WAC |
| Cooling | Fan: Fixed redundant |
| Dimensions | 4.4 x 44.5 x 28.8 cm |
| Reference weight | 4.71 kg |
Warranty
Manufacturers listed the enhanced limited lifetime hardware warranty (E-LLW) for original customer retention and manufacturer terms. The post-sale deadlines, regional hardware replacement, start time and 90 days of basic TAC support are preserved as originally scheduled; the company's actual supply warranty and service eligibility have not been confirmed.
