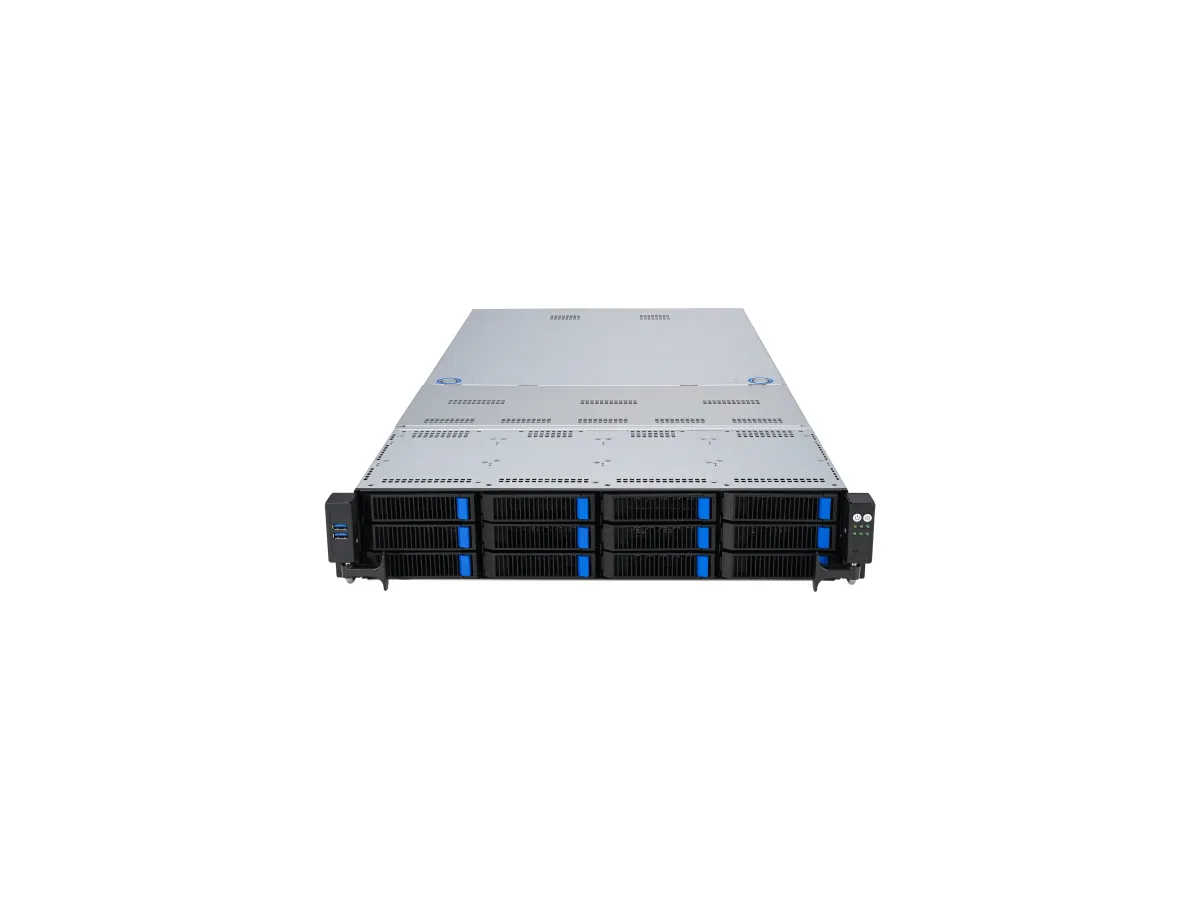

Key Architecture Highlights
- Processor platform: Intel®Xeon® Processor Scalable Family
- Chipset: Intel® C741 Chipset
- Drive bays: 12 x 3.5”/2.5" hot-swap bay 2 x M.2 slot
Applications
- Enterprise computing
- Virtualization and cloud computing
- Data center
Engineering Parameters
| Processor platform | Intel®Xeon® Processor Scalable Family |
|---|---|
| Chipset | Intel® C741 Chipset |
| Memory support | Total slot: 32 (8-channel per CPU, 16 DIMM per CPU) Capacity: Maximum up to 4TB Memory type: 4th: 4800 MHz (1DPC)/ 4400 MHz (2DPC) 5th: 5600/4800 MHz (1DPC)/4400(2DPC) Memory size: 64GB, 32GB, 16GB RDIMM 256GB, 128GB RDIMM 3DS * Refer to www.asus.com/support for more information |
| Expansion slots | Up to 9 slots (with OCP) • 6 x PCIe Gen5 x8 link or 3 x PCIe Gen5 x16 link (FHFL) • 1 x PCIe Gen5 x16 link (FHFL) • 1 x PCIe Gen5 x16 (LP) • 1 x OCP 3.0 Up to 9 slots (without OCP) • 8 x PCIe Gen5 x8 link or 4 x PCIe Gen5 x16 link (FHFL) • 1 x PCIe Gen5 x16 (LP) |
| Storage configuration | Configuration #1 (Non-GPU support) Front Bays: 12 x 3.5”/2.5" hot-swap drive bays 8 x NVMe/SAS*/SATA + 4 NVMe/SATA Rear Bays (Optional): 2 x 2.5" hot-swap drive bays 2 x NVMe/SATA Configuration #2 (GPU support) 12 x 3.5”/2.5" hot-swap drive bays 8 x NVMe/SAS*/SATA + 4 NVMe/SATA *HBA/RAID card is required to support SAS hard drives |
| Drive bays | 12 x 3.5”/2.5" hot-swap bay 2 x M.2 slot |
| Cooling system | System Fan: 4 Cooling Devices Supports: Configuration # 1 (Non- GPU support) 2U Standard Heatsink Configuration # 2 (GPU support) 1U Standard Heatsink 1U EVAC Heatsink |
| Network interfaces | Configuration #1 (Non-GPU support) 1 x Mgmt LAN 4 x1Gbe(Intel I350-AM4) RJ45 port (optional) or 2 x 10Gbe(Intel X710-AT2) RJ45 port (optional) Configuration #2 (GPU support) 1 x Mgmt LAN 2 x 10Gbe(Intel X710-AT2) RJ45 port (optional) |
| Display features | Aspeed AST2600 64MB |
| Front interfaces | 2 x USB 3.2 Gen1 ports |
| Rear interfaces | 2 x USB 3.2 Gen1 ports 1 x VGA port 1 x RJ-45 Management LAN port 2 x 10G or 4 x 1G RJ-45 GbE LAN port (optional) |
| Chassis form factor and dimensions | Chassis dimensions: 840mm x 447mm x 88mm chassis form factor:2U |
| Weight |
Warranty
Public manufacturer information does not specify the warranty term applicable to our supply channel. The supply region, channel and actual warranty service are confirmed in the supply contract.
