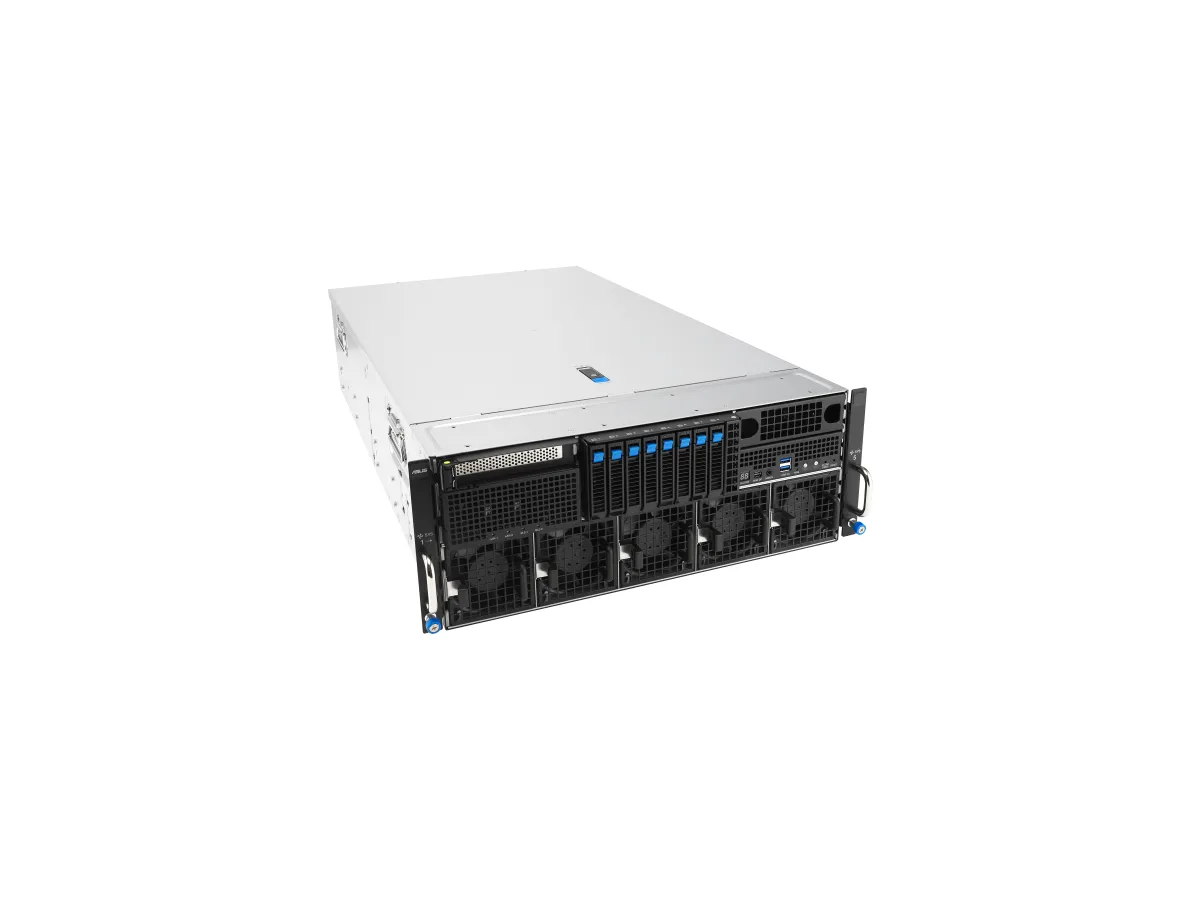

Key Architecture Highlights
- Processor platform: 2 x Socket SP5 (LGA 6096) AMD EPYC™ 9005 series processors* * Up to 500W cTDP, TDP support varies by configuration
- Network interfaces: 8 x 400Gbps ports (QSFP, ConnectX®-8) 2 x 10GbE LAN ports (RJ45, X710-AT2) 1 x Management Port
- GPU Supports: Up to 8 x NVIDIA RTX PRO™ 6000 Blackwell Server Edition GPU Cards* *Support short GPU brackets only Please find the latest GPU support from https://servers.asus.com/support/gpu
Applications
- AI training and inference
- High-performance computing
- Data center
Engineering Parameters
| Processor platform | 2 x Socket SP5 (LGA 6096) AMD EPYC™ 9005 series processors* * Up to 500W cTDP, TDP support varies by configuration |
|---|---|
| Memory support | Total Slots: 24 (12 channel per CPU, 12 DIMM per CPU) Capacity: Maximum up to 3TB Memory Type: DDR5 6400/5600 RDIMM Memory Size: 128GB, 96GB, 64GB, 32GB, 16GB RDIMM * Refer to ASUS server AVL for the latest update |
| Expansion slots | Up to 10 slots Rear: 8 x PCIe x16 for dual-slot GPU cards (Gen6 x16 link, FH/FL) 1 x PCIe x16 for NIC/BlueField-3 cards (Gen5 x16 link, FH/HL) Front: 1 x PCIe x16 (Gen5 x8 link, FH/HL) |
| Storage configuration | 8 x 2.5" Front Hot-swap Storage Bays Default SKU*: Backplane supports up to 8 x NVMe *MGX compliance 2 x M.2 Socket, supports up to 22110 type (PCIe Gen5 x4 link) (M.2 board supports up to 2 x NVMe) |
| Network interfaces | 8 x 400Gbps ports (QSFP, ConnectX®-8) 2 x 10GbE LAN ports (RJ45, X710-AT2) 1 x Management Port |
| GPU Supports | Up to 8 x NVIDIA RTX PRO™ 6000 Blackwell Server Edition GPU Cards* *Support short GPU brackets only Please find the latest GPU support from https://servers.asus.com/support/gpu |
| Front interfaces | 1 x Mini DisplayPort 2 x USB 5Gbps ports 1 x Debug port |
| Rear interfaces | 8 x QSFP ports 1 x USB 5Gbps port 2 x RJ-45 LAN ports 1 x RJ-45 management LAN port |
| Supported operating systems | Please find the latest OS support from https://servers.asus.com/support/os |
| Management features | ASUS Control Center Enterprise (in-band) ASMB12-iKVM for (out-of-band/BMC AST2600) |
| Chassis form factor and dimensions | Chassis dimensions: 800mm x 439.5mm x 175mm 31.5mm x 17.3mm x 6.9mm chassis form factor:4U |
| Weight | Net Weight: 45 Kg Gross Weight: 56 Kg |
| Power supply specifications | 3+1 redundant 3200W 80 PLUS Titanium power supply 220-240 Vac, 16A (x4) 50/60Hz |
| Operating environment |
